VCI 0702 PRO LITE TINY WHOOP RACING MOTORS – 30000KV / 27000KV / 23000KV
R215
Experience the future of competitive micro racing with the Vulcan Innovation (VCI) 0702 PRO LITE. Engineered specifically for elite tiny whoop pilots, this professional-grade brushless motor weighs a staggering 1.38g, delivering a new era of blistering speed, razor-sharp precision, and unmatched agility for top-tier 65mm builds.
- KV Rating: 30000KV tuned for explosive maximum-RPM racing
- Extreme Lightweight: Tips the scales at just 1.38g (including 35mm cable)
- Premium Internals: High-efficiency N52SH arc magnets in a 9S12P configuration
- Racing Optimized: The ultimate powertrain upgrade for frames like the Air65
- Quantity: Per Motor
Vulcan Innovation VCI 0702 PRO LITE Micro Motor (30000KV)
Welcome to a new era of speed and precision. The Vulcan Innovation (VCI) 0702 PRO LITE represents the absolute apex of micro motor technology, crafted specifically for elite tiny whoop racers who refuse to compromise. By obsessively shedding every fraction of unnecessary mass, VCI has achieved a staggering motor weight of just 1.38g (with cables). This drastic reduction in all-up weight (AUW) translates to instantaneous acceleration, locked-in cornering, and the ability to change direction faster than the competition on demanding indoor tracks.
Beneath the ultra-lightweight bell lies a highly efficient 9S12P stator configuration paired with premium N52SH arc magnets. This design ensures maximum magnetic flux, translating to a buttery-smooth throttle feel and explosive punch-outs. Optimized for cutting-edge 65mm racing chassis like the Air65, and perfectly paired with high-discharge 380mAh 1S batteries, the VCI 0702 PRO LITE delivers the ultimate power-to-weight ratio to help you conquer the podium.
Key Features
- Elite Racing Pedigree: Purpose-built for professional pilots, delivering the relentless thrust and hyper-responsive control required for top-tier competitive racing.
- Staggering 1.38g Weight: One of the lightest 0702 motors on the market, drastically reducing your drone’s AUW to maximize agility and flight efficiency.
- Premium Arc Magnets: Utilizes high-grade N52SH arc magnets that contour perfectly to the stator, minimizing air gaps and increasing overall magnetic efficiency.
- Explosive 30000KV Output: Tuned for absolute maximum RPM, providing blistering straight-line speed and instant recovery from sharp hairpins.
- High-Quality Wiring: Outfitted with premium 30AWG, 35mm silicone wires for unrestricted current flow from your AIO flight controller.

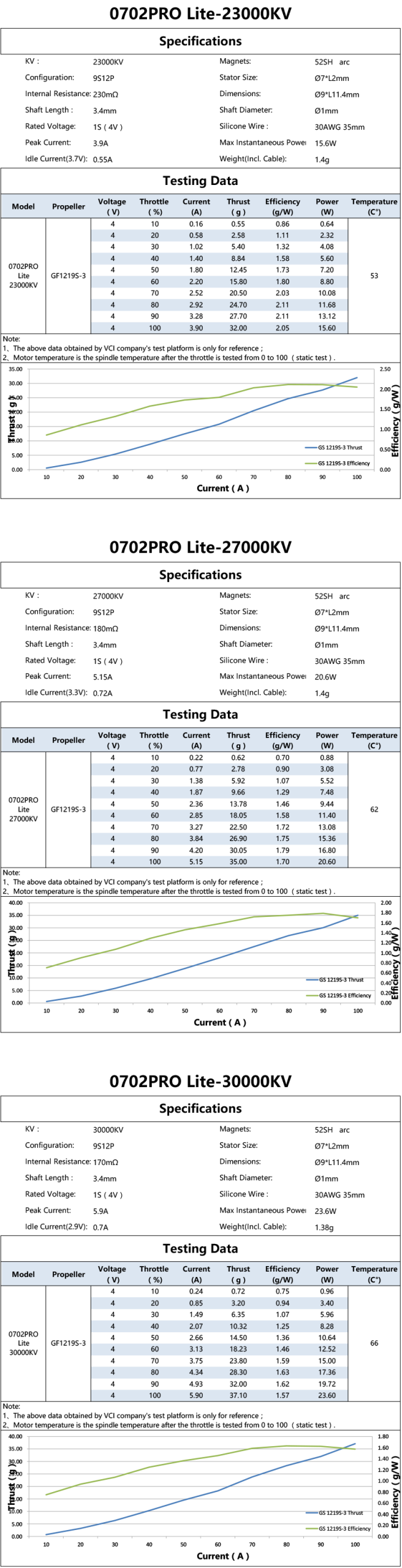

Specifications
| Brand | Vulcan Innovation (VCI) |
|---|---|
| Model | 0702 PRO LITE |
| KV Rating | 30000KV |
| Configuration | 9S12P |
| Magnets | N52SH Arc Magnets |
| Rated Voltage | 1S LiPo / LiHV (4V) |
| Stator Size | 0702 (7x2mm) |

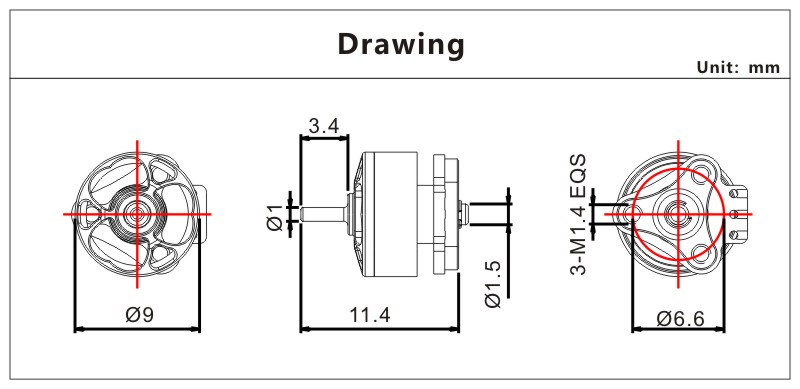

| Motor Dimensions | Φ9 x 11.4mm |
| Shaft Diameter | 1.0mm |
| Shaft Length | 3.4mm |
| Internal Resistance | 170mΩ |
| Peak Current | 5.9A |
| Max Instantaneous Power | 23.6W |
| Wire Specifications | 30AWG Silicone Wire, 35mm Length |
| Weight | 1.38g (Including Cable) |
Recommended Setup
- Frame: 65mm Ultra-Light Racing Frame (e.g., Air65)
- Propellers: 31mm Bi-Blade or Tri-Blade (1.0mm Shaft)
- Flight Controller: 5A+ 1S AIO Flight Controller
- Battery: 1S 380mAh LiHV with High-Discharge Connector (e.g., BT2.0 / A30)
What’s in the Box
- 1x Vulcan Innovation VCI 0702 PRO LITE Micro Motor (30000KV)
- 1x Motor Mounting Hardware Set
| MOTOR KV | 30000KV, 27000KV, 23000KV |
|---|
