AXISFLYING C206 2006 3.5 INCH CINEWHOOP/FREESTYLE MOTORS – 6S 1960KV/2100KV/2500KV
R340
The Axisflying C206 is a high-torque cinematic brushless motor engineered specifically for 3.5-inch cinewhoops and heavy-payload FPV drones. Utilizing a robust 12N14P configuration and Axisflying’s IP53-rated Bearing Shield Technology, it delivers the extreme smoothness, linear power output, and reliability required to effortlessly carry full-sized action cameras on commercial shoots.
- KV Options: 1960KV / 2100KV / 2500KV (Selectable)
- Application: Optimized for 3.5-inch cinematic frames (e.g., C35) carrying GoPros
- Bearing Shield Technology: IP53 dustproof and waterproof bearing protection
- Configuration: 12N14P structure for high torque and delicate throttle control
- Quantity: Per Motor
Axisflying C206 Cinematic Brushless Motor (1960KV / 2100KV / 2500KV)
The Axisflying C206 motor is developed for professional FPV cinematographers who require uncompromised control, anticipation, and precision from their 3.5-inch cinewhoops. When flying to create, pilots often only have one chance to capture the perfect shot. The C206 features a powerful 12N14P internal structure that provides the aggressive torque needed to carry a full-size GoPro out of steep dives, while maintaining the silky-smooth, linear power delivery essential for delicate proximity flying.
Built to withstand the rigors of commercial filming environments, the C206 incorporates Axisflying’s advanced Bearing Shield Technology (BST). This IP53-rated design effectively seals the bearing placement, shielding it from dust, dirt, and moisture. By protecting these critical internal components from both environmental contamination and crash impacts, the motor preserves its factory smoothness over countless packs, drastically reducing high-frequency vibrations in your cinematic footage.
Key Features
- 3.5-Inch Cinematic Optimization: Purpose-built for 3.5-inch cinewhoop frames, offering the perfect balance of lightweight efficiency and the high thrust needed to lift heavy HD payloads.
- Bearing Shield Technology (BST): Features an IP53 dustproof and waterproof bearing seal that protects against the elements and prevents bearing crush during hard impacts.
- Smooth 12N14P Power: The magnetic configuration ensures a highly linear throttle response, allowing for the micro-adjustments and delicate control required for professional shooting.

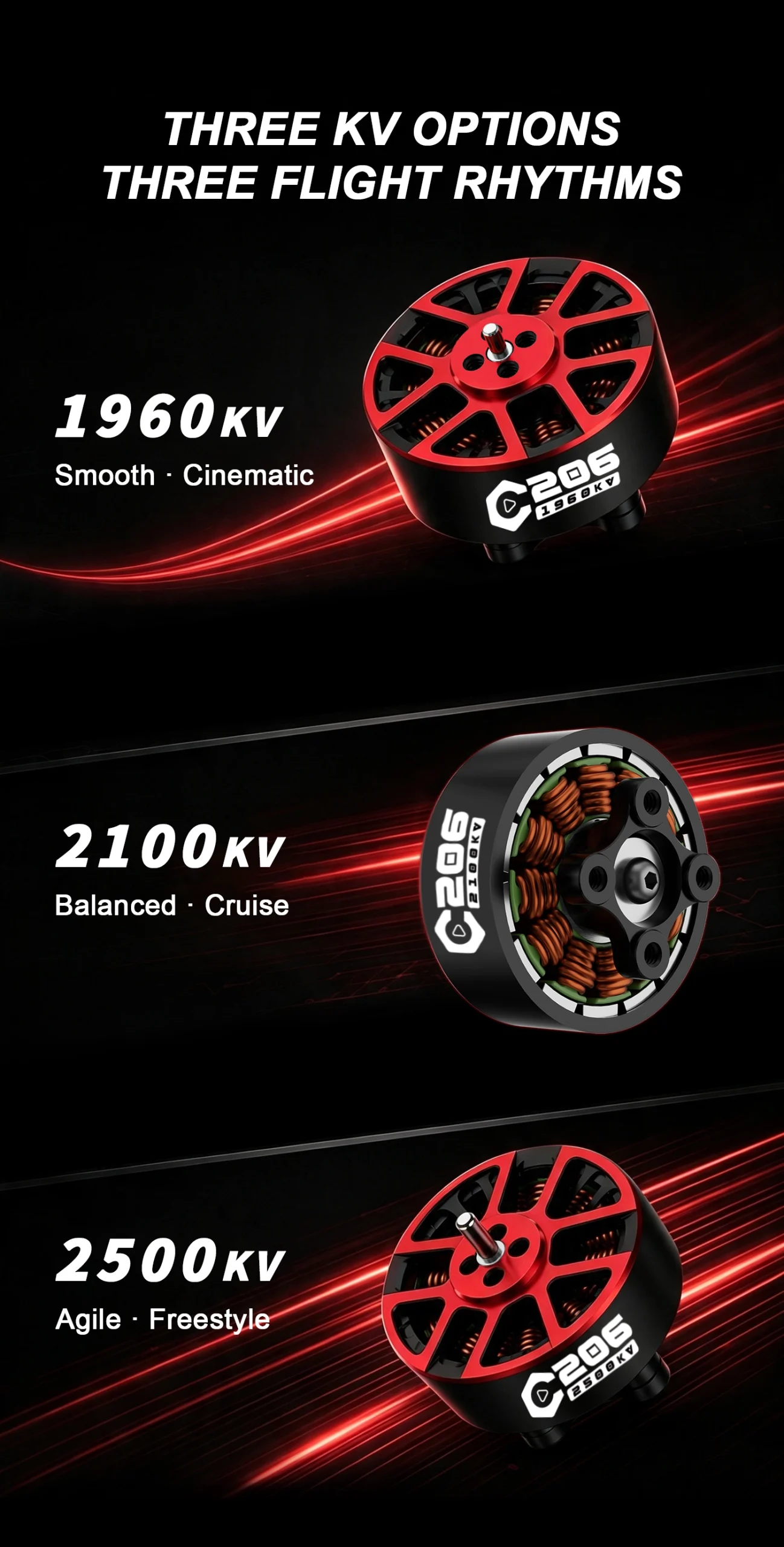

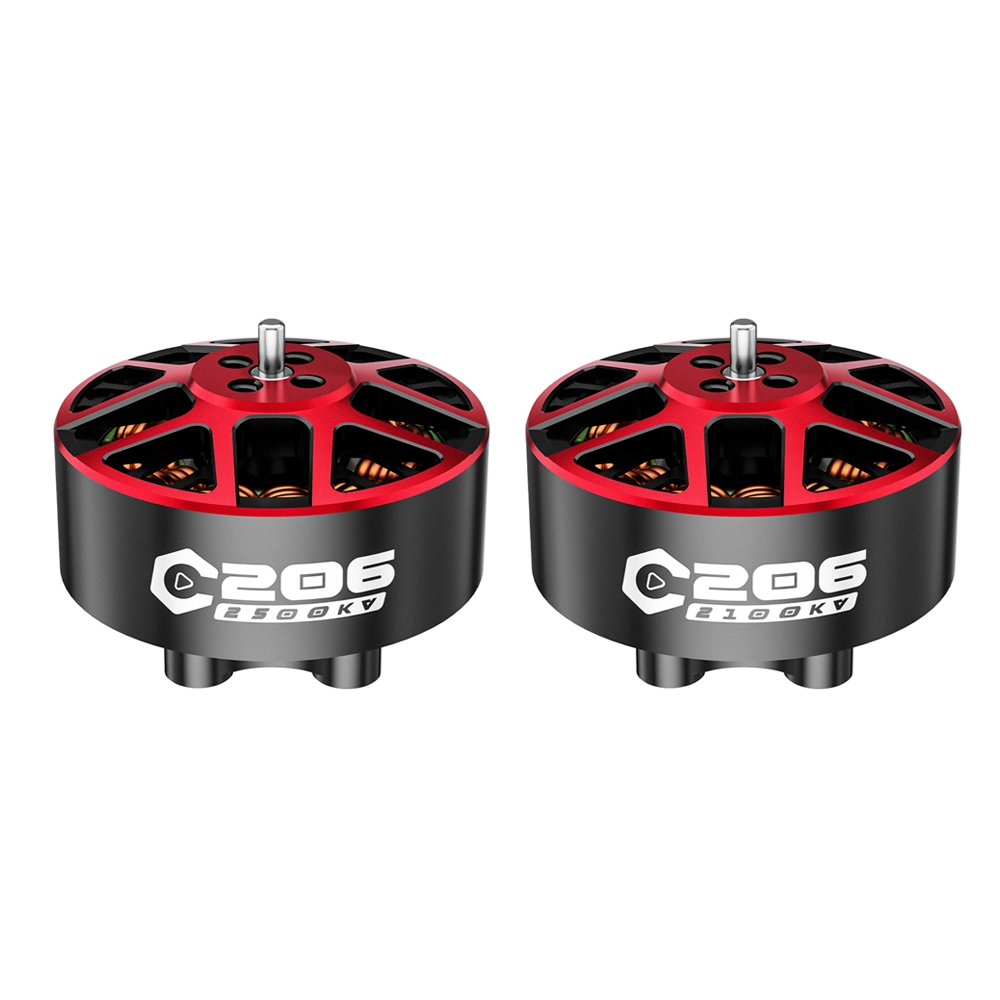

- Versatile KV Range: Available in 1960KV for maximum 6S efficiency, 2100KV for balanced performance, and 2500KV for pilots demanding the absolute highest thrust output.
- High-Efficiency Design: Engineered to maximize flight times without sacrificing the explosive punch-out power needed to recover heavy cinematic rigs.

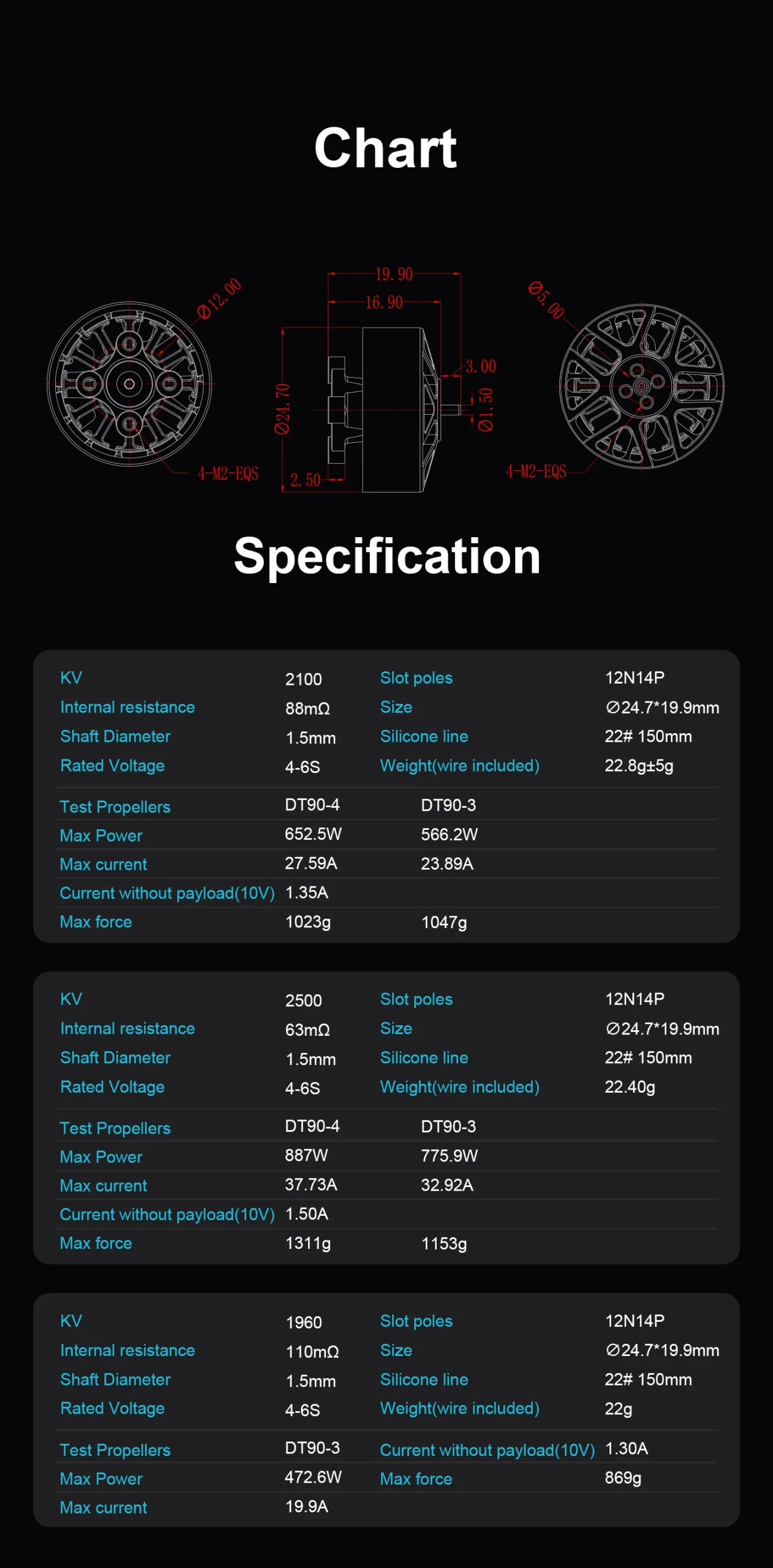

Specifications
| Brand | Axisflying |
|---|---|
| Model | C206 Cinematic |
| KV Options | 1960KV / 2100KV / 2500KV (Selectable) |
| Configuration | 12N14P |
| Input Voltage | 6S LiPo |

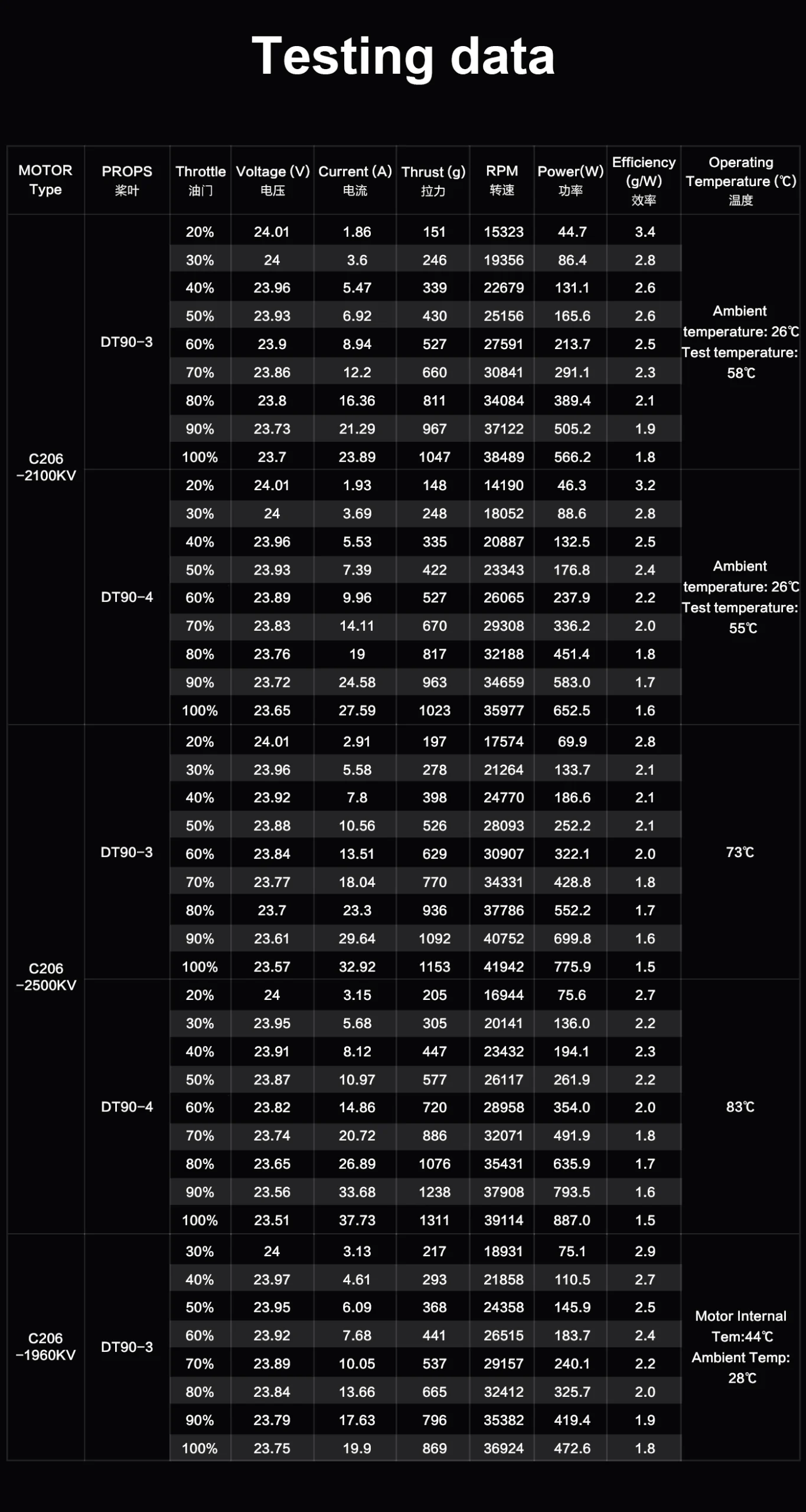

| Max Thrust | Up to 869g (1960KV) / 1047g (2100KV) / 1311g (2500KV) |
| Max Current | 19.9A (1960KV) / 27.59A (2100KV) / 37.73A (2500KV) |
| Internal Resistance | 110mΩ (1960KV) / 88mΩ (2100KV) / 63mΩ (2500KV) |
| Motor Dimensions | Designed for 3.5-inch class |

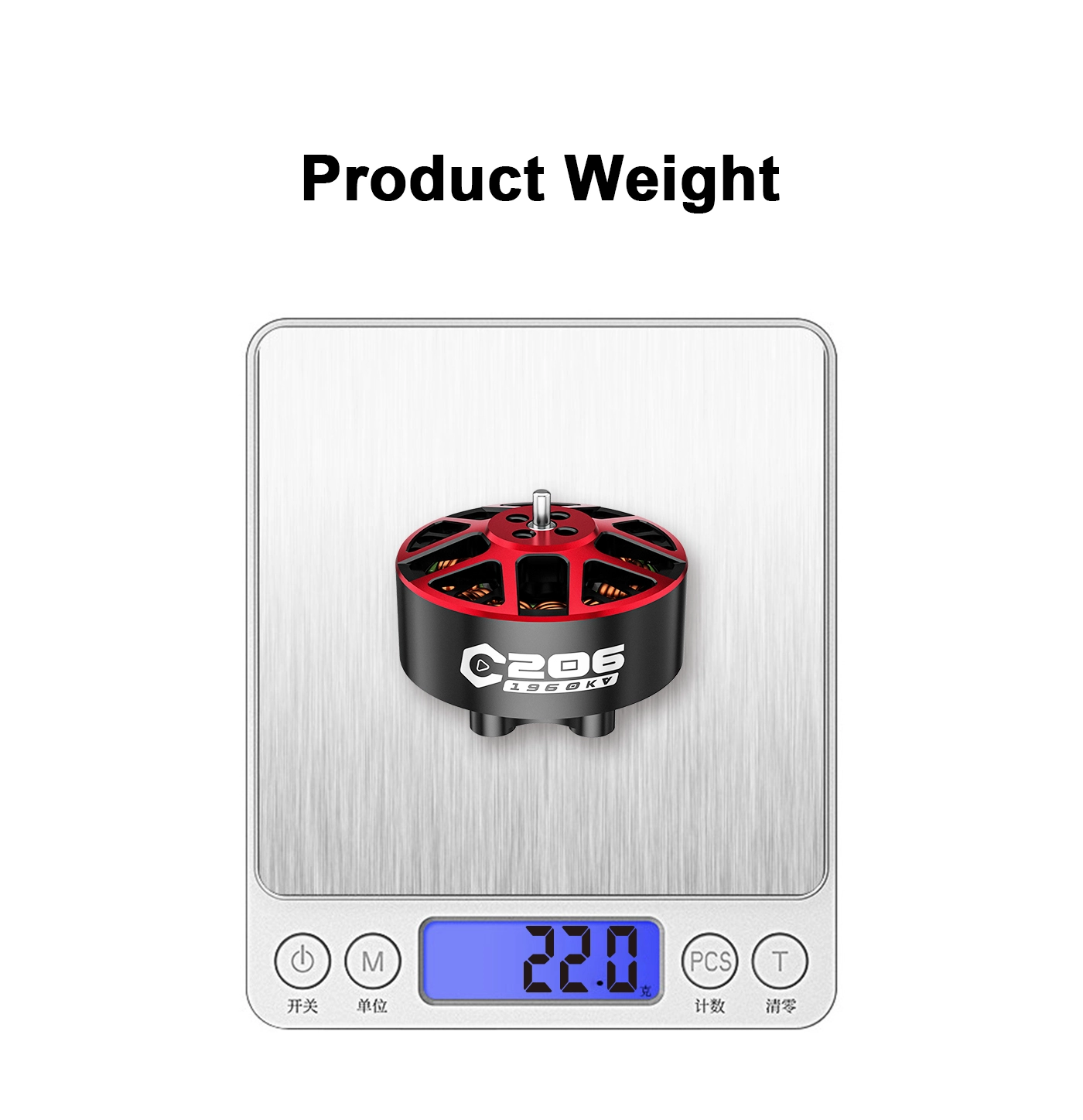

| Weight | Approx. 22g – 22.8g (Including Cable) |
Recommended Setup
- Motors: Axisflying C206 (Select KV)
- Propellers: Gemfan D90-3 / HQ T90-4 / HQ D90-3
- Electronics: 35A to 45A AIO or ESC Stack
- Battery: 6S 1050mAh – 1300mAh LiPo

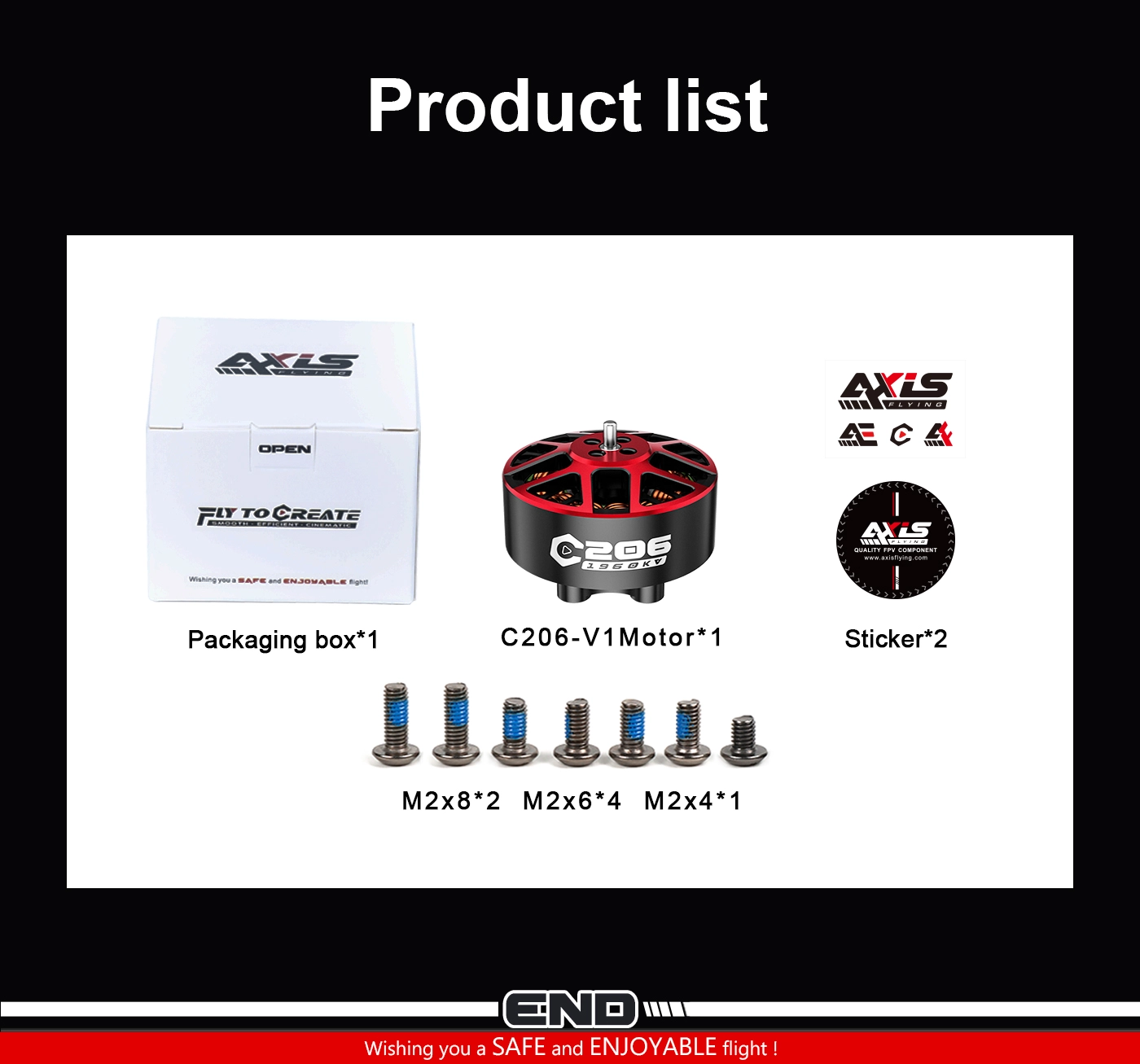

What’s in the Box
- 1x Axisflying C206 Brushless Motor
- 2x M2x8mm Screws
- 4x M2x6mm Screws
- 1x M2x4mm Screw
- 2x Axisflying Stickers
| MOTOR KV | 1960KV, 2100KV, 2500KV |
|---|
