VCI 0702 PRO DB TINY WHOOP RACING MOTORS – 30000KV / 27000KV / 23000KV
R230
Experience the future of micro motor technology with the Vulcan Innovation (VCI) 0702 PRO DB. Engineered specifically as the premium motor of choice for elite tiny whoop racers, this ultra-lightweight powerhouse delivers a new era of speed, precision, and championship-winning performance for top-tier 65mm 1S builds.
- KV Options: 23000KV / 27000KV / 30000KV (Selectable)
- Ultra-Lightweight: Weighs an astonishing 1.49g (including 35mm cable)
- Premium Internals: Equipped with high-efficiency N52SH arc magnets
- Configuration: 9S12P structure for smooth, rapid throttle response
- Quantity: Per Motor

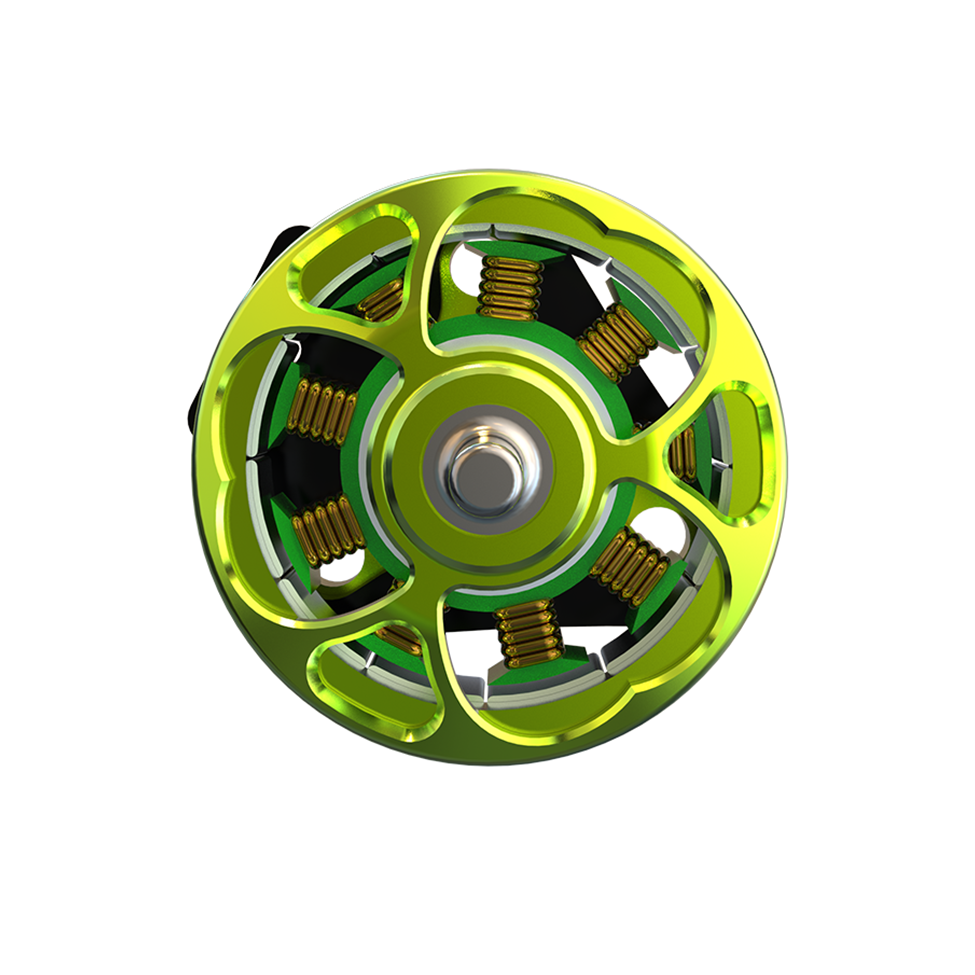

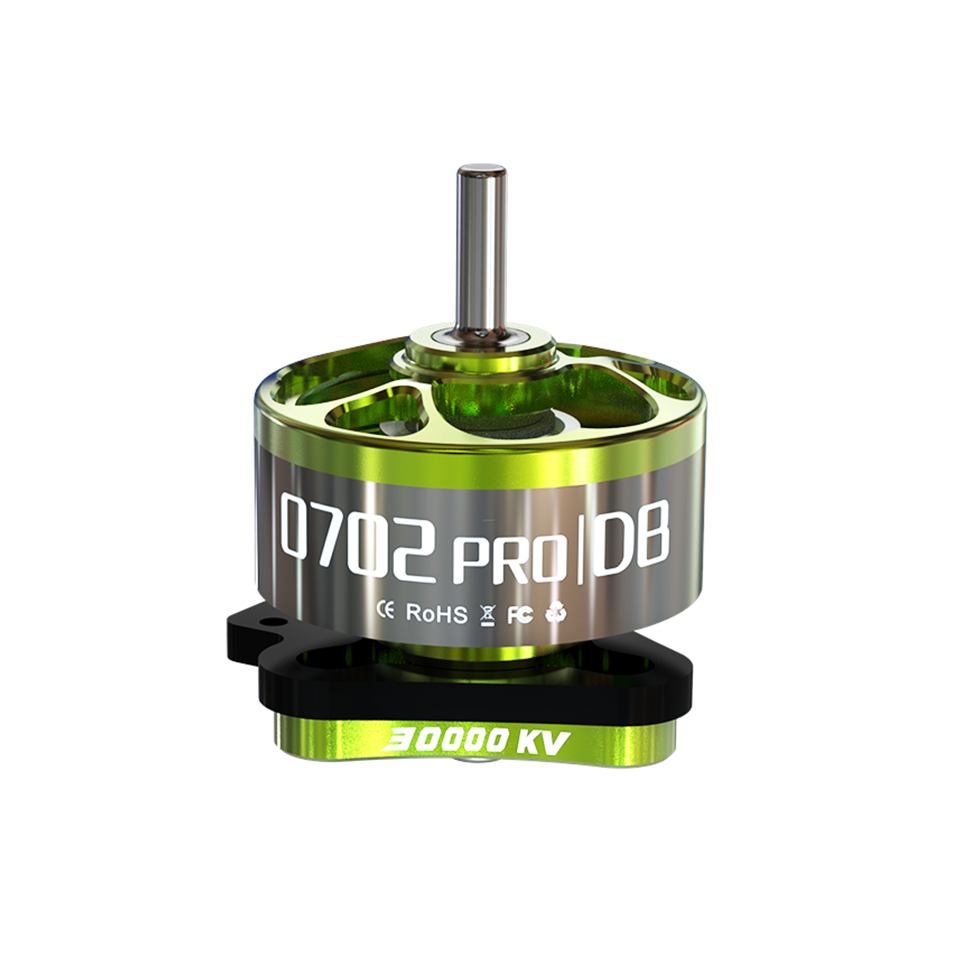

Vulcan Innovation VCI 0702 PRO DB Micro Motor
Welcome to a new era of speed and precision. The Vulcan Innovation (VCI) 0702 PRO DB is meticulously crafted to be the premium motor of choice for elite tiny whoop racers. When every fraction of a second counts on the track, the VCI 0702 PRO DB provides the instantaneous acceleration, locked-in cornering, and blistering top-end thrust required to dominate competitive 65mm racing circuits. Elevate your indoor FPV experience and join the ranks of the elite with motor technology designed strictly for the podium.
Weighing a groundbreaking 1.49g (with the 35mm silicone wire included), these motors maintain an incredibly agile power-to-weight ratio to keep your racing rig feeling weightless. Inside the 0702 stator, a 9S12P configuration paired with high-temperature N52SH arc magnets ensures maximum magnetic efficiency and a buttery-smooth throttle feel. Whether you require the relentless straight-line speed of the 30000KV variant, the balanced agility of the 27000KV, or the smooth technical precision of the 23000KV, the VCI 0702 PRO DB series offers a perfectly tailored powertrain for your specific racing style.
Key Features
- Elite Racing Pedigree: The ultimate premium upgrade for 65mm tinywhoops, delivering the explosive power and razor-sharp response demanded by top-tier competitive pilots.
- Ultra-Lightweight Design: Tipping the scales at just 1.49g per motor, it drastically reduces the all-up weight (AUW) of your racing quad for unmatched handling and acceleration.
- Premium Arc Magnets: Utilizes high-grade N52SH arc magnets that sit perfectly contoured to the stator, increasing magnetic flux and overall motor efficiency.
- Tailored KV Options: Available in 23000KV for tight technical tracks, 27000KV for balanced racing, and a massive 30000KV for pilots demanding absolute maximum RPM.
- High-Quality Wiring: Outfitted with premium 30AWG, 35mm silicone wires for optimal, unrestricted current flow from your 1S AIO flight controller.

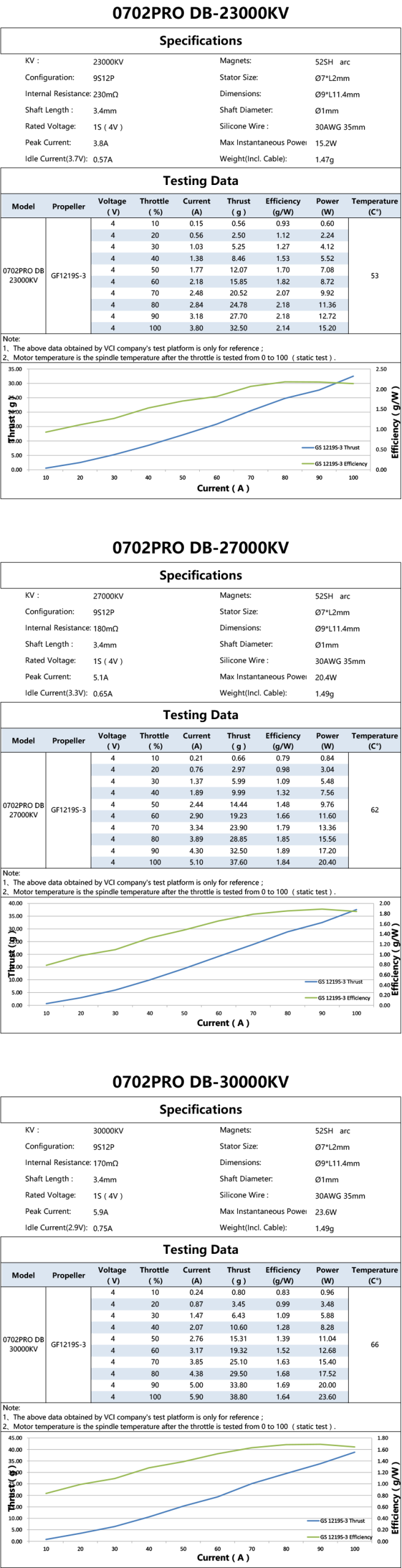

Specifications
| Brand | Vulcan Innovation (VCI) |
|---|---|
| Model | 0702 PRO DB |
| KV Options | 23000KV / 27000KV / 30000KV (Selectable) |
| Configuration | 9S12P |
| Magnets | N52SH Arc Magnets |
| Rated Voltage | 1S LiPo / LiHV (4V) |
| Stator Size | 0702 (7x2mm) |
| Motor Dimensions | Φ9 x 11.4mm |
| Shaft Diameter | 1.0mm |
| Shaft Length | 3.4mm |
| Internal Resistance | 170mΩ (Based on 30000KV) |
| Peak Current | 5.9A (Based on 30000KV) |
| Max Instantaneous Power | 23.6W (Based on 30000KV) |
| Wire Specifications | 30AWG Silicone Wire, 35mm Length |
| Weight | 1.49g (Including Cable) |
Recommended Setup
- Frame: 65mm 1S Tiny Whoop Frame (e.g., Air65, Cockroach)
- Propellers: 31mm Bi-Blade or Tri-Blade (1.0mm Shaft)
- Flight Controller: 5A 1S AIO Flight Controller
- Battery: 1S 380mAh LiHV with High-Discharge Connector (BT2.0 / A30)
What’s in the Box
- 1x Vulcan Innovation VCI 0702 PRO DB Micro Motors (Selected KV)
- 1x Motor Mounting Hardware Set
| MOTOR KV | 30000KV, 27000KV, 23000KV |
|---|
