T-MOTOR M1002 19000KV TINYWHOOP MOTORS
R230
The T-Motor M1002 micro brushless motor is designed for 75mm tiny whoops utilizing 40mm propellers and 1S LiPo batteries. It features a unibell design, strong N52 round magnets, and PCB-soldered motor wires for increased durability.
Note: T-Motor has updated this motor to 19000KV. While official manufacturer data is pending, performance and dimensions remain highly similar to the previous 18000KV version.
- KV Rating: 19000KV
- Weight: 2.4g (including cable)
- Shaft Diameter: 1.5mm
- Pre-installed JST-1.25 Connector (40mm wire)
- Unibell design with N52 round magnets
In stock

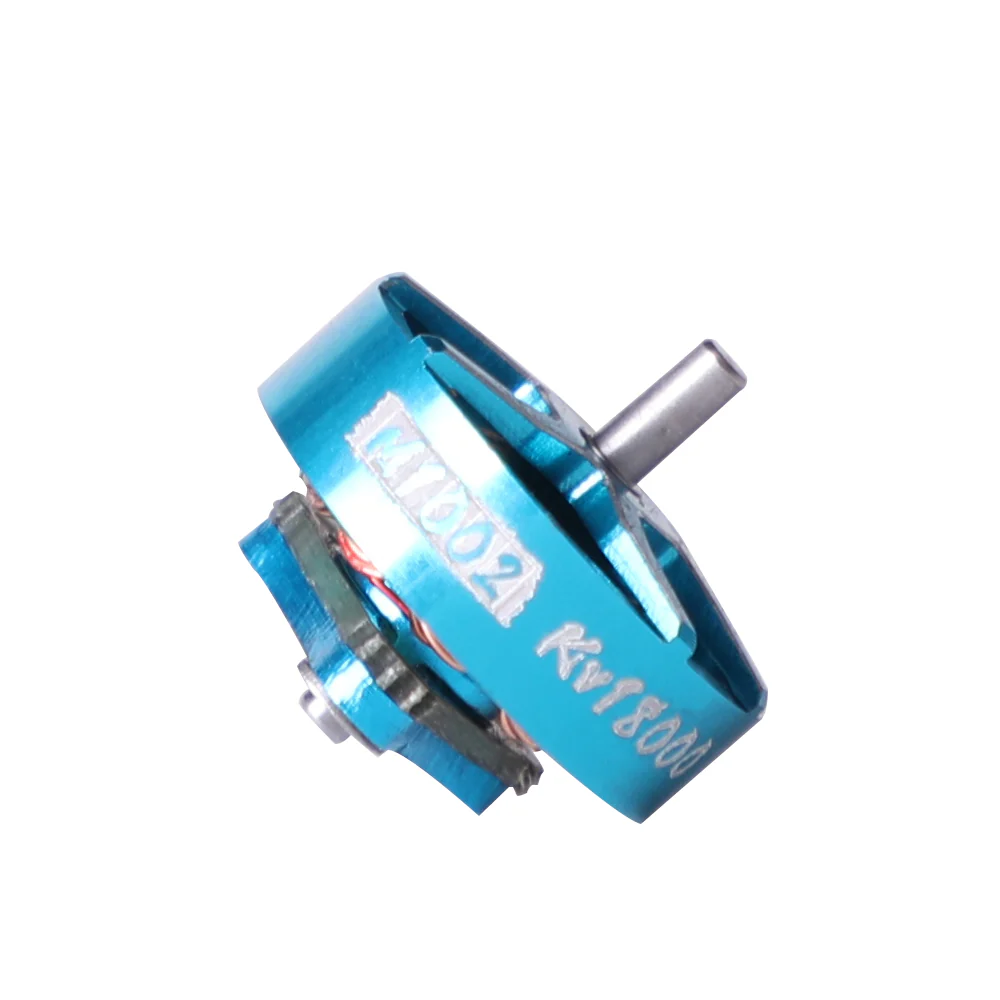

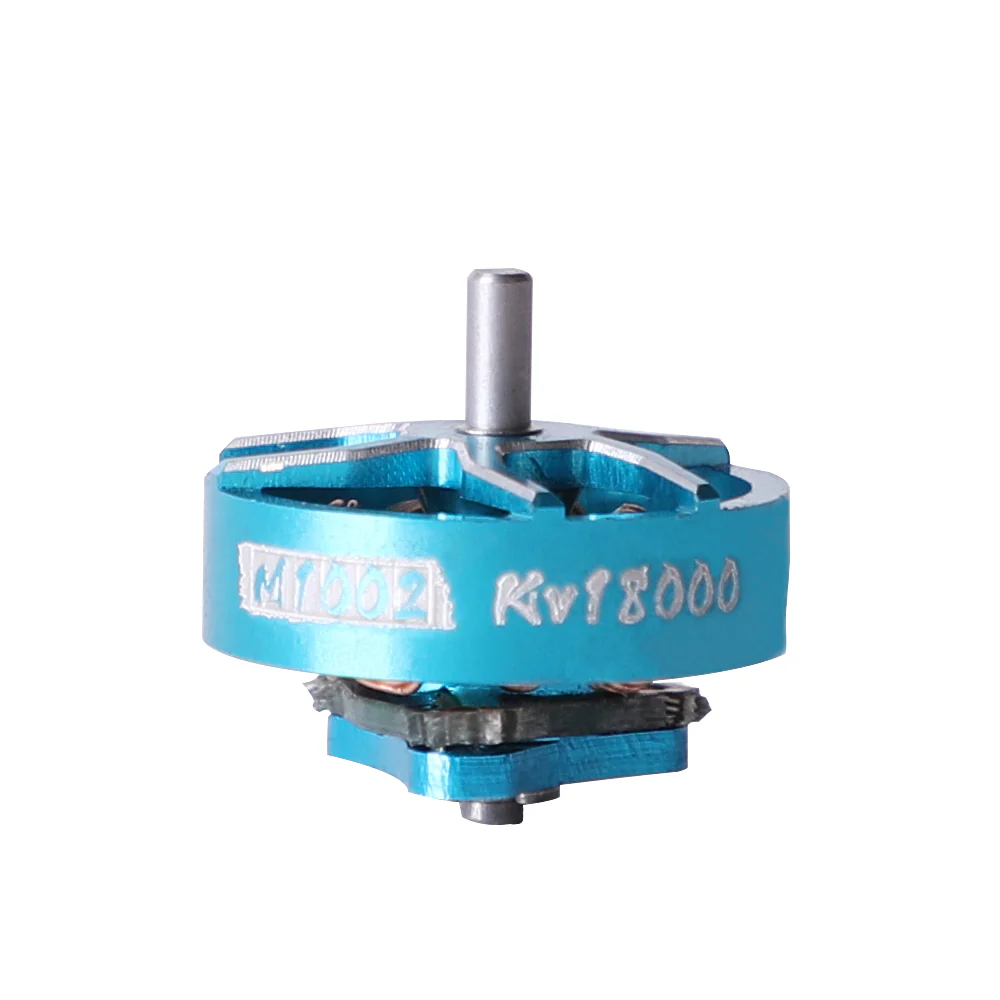

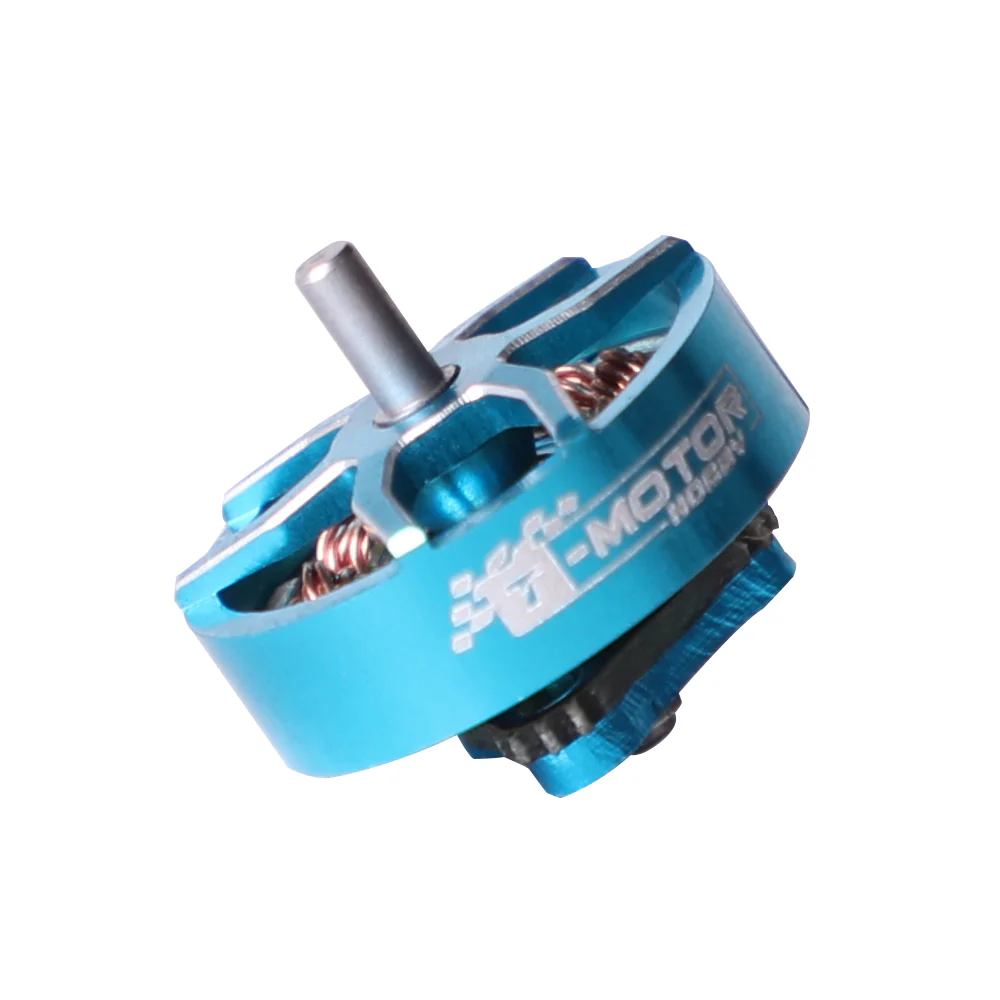

T-Motor M1002 Micro Motor
The T-Motor M1002 is a micro brushless motor engineered for 75mm whoops and lightweight 1S builds. To improve structural durability in micro applications, the motor features a unibell design and routes the motor wires through a small PCB base to prevent wire breakage during crashes. Despite its compact 2.4g footprint, it utilizes strong N52 round magnets to deliver consistent torque for 40mm propellers. It includes a pre-installed JST-1.25 connector on a 40mm cable for direct, solder-free connection to micro flight controllers.
Please note: The latest iteration of this motor is 19000KV. Official documentation and imagery from the manufacturer for the 19000KV version are currently pending, but physical dimensions and performance characteristics are virtually identical to the previous 18000KV model.
Key Features
- Durable Unibell Design: A single-piece bell construction increases structural integrity against indoor collisions and prop strikes.

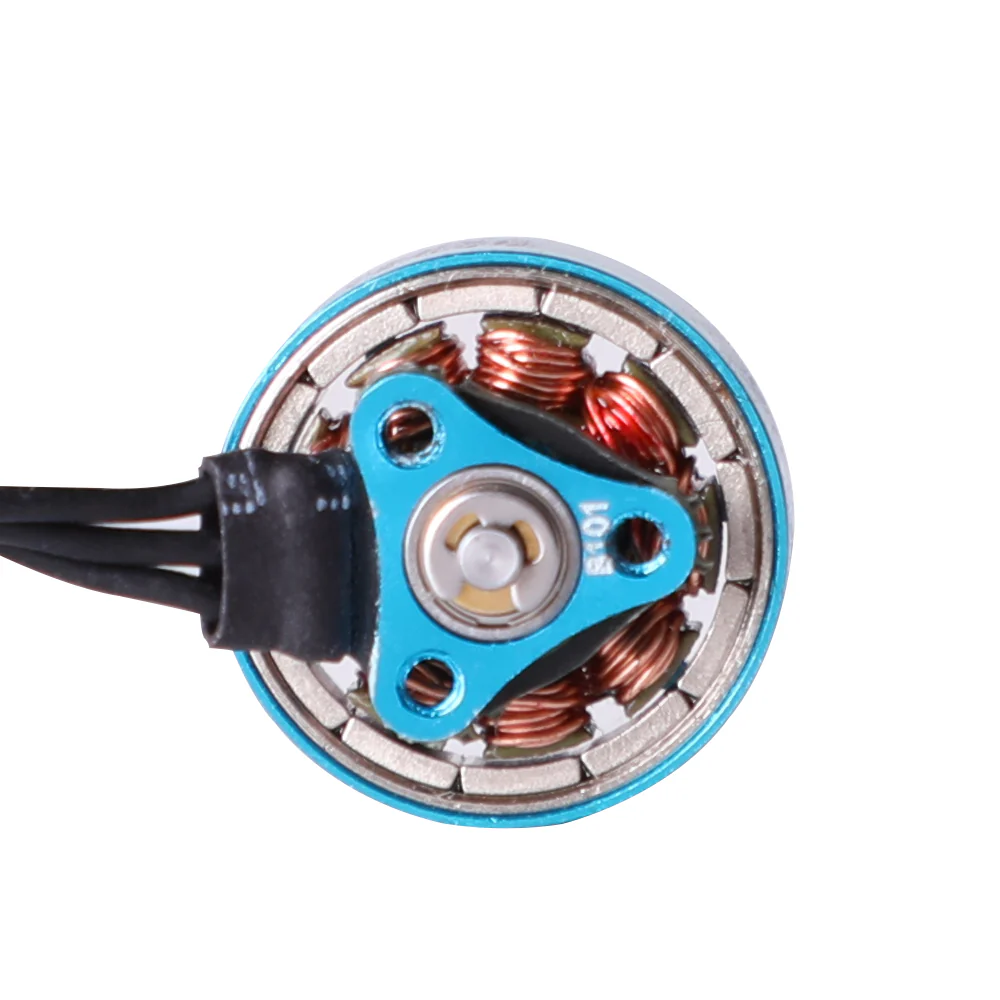

- PCB Wire Routing: Motor cables are soldered directly to a small base PCB rather than directly to the windings, significantly reducing the risk of broken wires.
- N52 Round Magnets: Provides strong magnetic efficiency and consistent torque delivery in a compact 1002 stator size.
- Plug-and-Play: Comes pre-wired with 40mm cables terminating in a standard JST-1.25 connector for easy AIO board integration.
- Standard Micro Mounting: Utilizes a 6.6mm M1.4 mounting pattern suited for 75mm whoop frames.

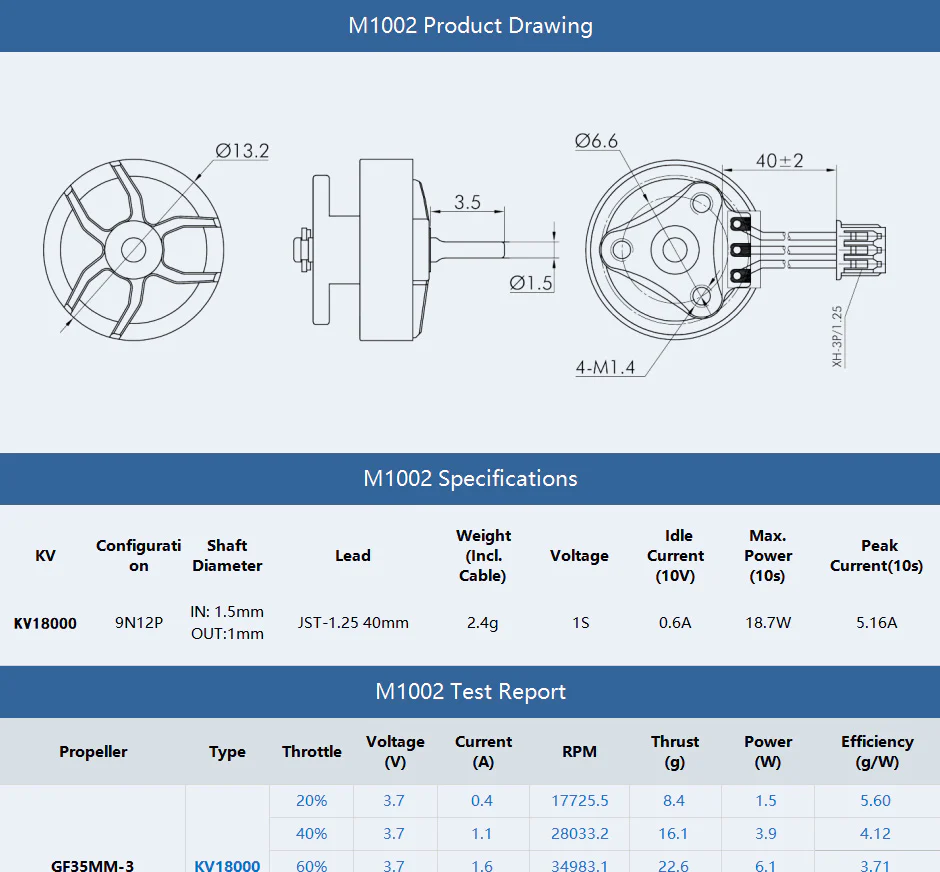

Specifications
| Model | T-Motor M1002 |
|---|---|
| KV Rating | 19000KV (Replaces previous 18000KV) |
| Configuration | 9N12P |
| Magnets | N52 Round |
| Shaft Diameter | 1.5mm |
| Rated Voltage (LiPo) | 1S |
| Mounting Pattern | 6.6mm x 6.6mm (M1.4) |
| Lead Wires | 40mm with JST-1.25 Connector |
| Weight (Including Cable) | 2.4g |
| Recommended Setup | 75mm Frame, 40mm Propellers, 1S Battery |

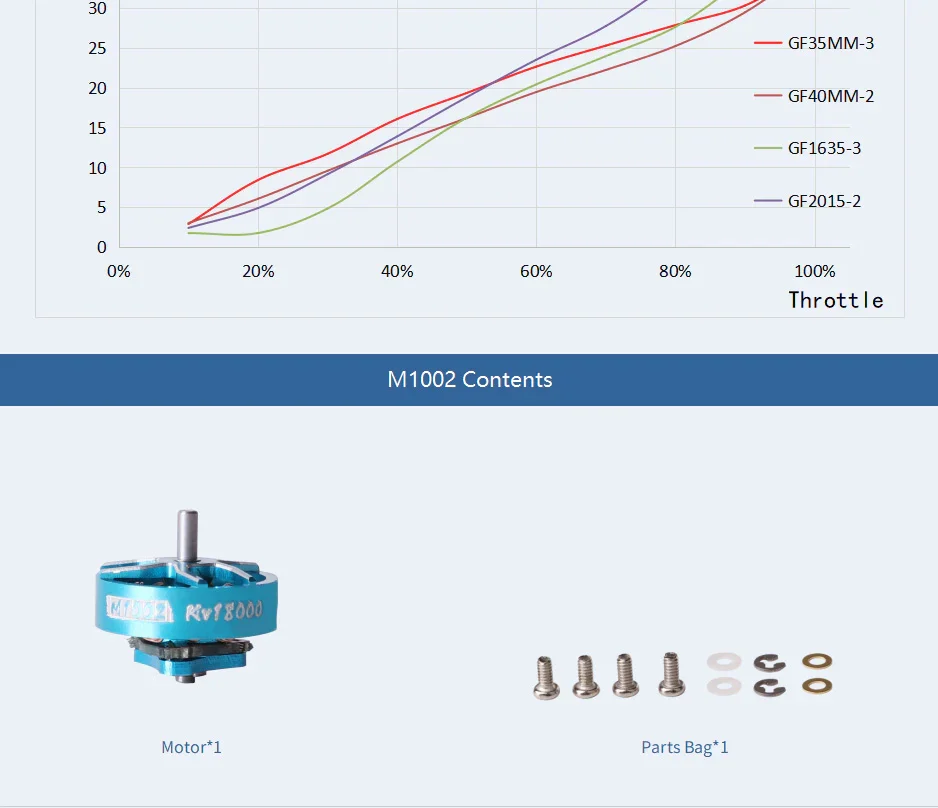

What’s in the Box
- 1x T-Motor M1002 19000KV Motor
- 1x Screw Set
