AXISFLYING SMURFS V2 VTX 5.8GHZ 1.6W ANALOG VIDEO TRANSMITTER
R780
The Axisflying Smurfs V2 5.8GHz is a high-power analog video transmitter engineered for demanding long-range and freestyle FPV drones. Featuring a robust CNC integrated heatsink and a secure MMCX connector, it delivers a massive 1.6W (1600mW) of maximum output power for crystal-clear video penetration in challenging environments.
- Max Power Output: 1600mW (Adjustable 25/100/400/800/1600mW)
- Input Voltage: 7V to 36V (2S to 8S LiPo Compatible)
- Antenna Connector: MMCX
- Mounting Pattern: 20x20mm (M2)
- Telemetry Protocol: IRC Tramp for smart OSD configuration
In stock
Axisflying Smurfs V2 5.8GHz 1.6W Analog VTX
The Axisflying Smurfs V2 1.6W analog video transmitter is built for pilots who push their freestyle and long-range drones to the absolute limits. Outputting a staggering 1600mW at its highest setting, this VTX ensures a stable, clean video feed when flying behind dense foliage, abandoned concrete structures, or over vast distances. To manage the immense heat generated at 1.6W, the Smurfs V2 is enclosed in a CNC-machined aluminum heatsink, providing excellent thermal dissipation while simultaneously offering structural protection during hard crashes.
Designed with reliability in mind, it utilizes a highly durable MMCX antenna connector that resists the wear and tear of repetitive impacts far better than standard U.FL ports. The VTX supports a massive 7V to 36V input voltage range, giving you the flexibility to wire it directly to battery power on 6S and even extreme 8S high-voltage builds. With IRC Tramp protocol support, changing your power levels and navigating all 48 channels via your Betaflight OSD is fast and intuitive.
Key Features
- 1.6W High-Power Output: Five adjustable power levels (25mW, 100mW, 400mW, 800mW, 1600mW) provide the perfect balance between heat management and extreme signal penetration.

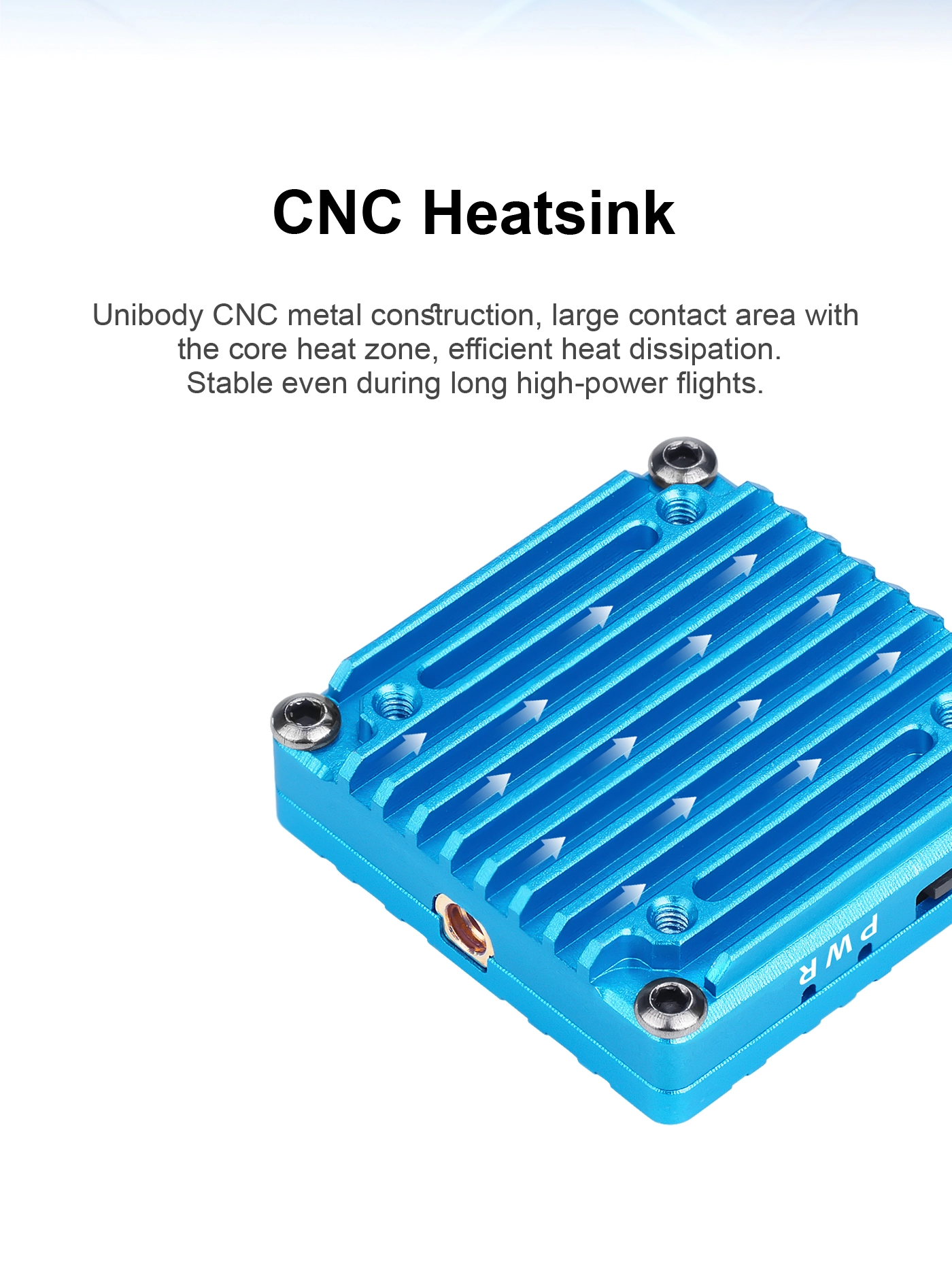

- CNC Aluminum Heatsink: An integrated, heavy-duty heatsink effectively dissipates heat, preventing thermal throttling and protecting the internal circuitry from physical impacts.

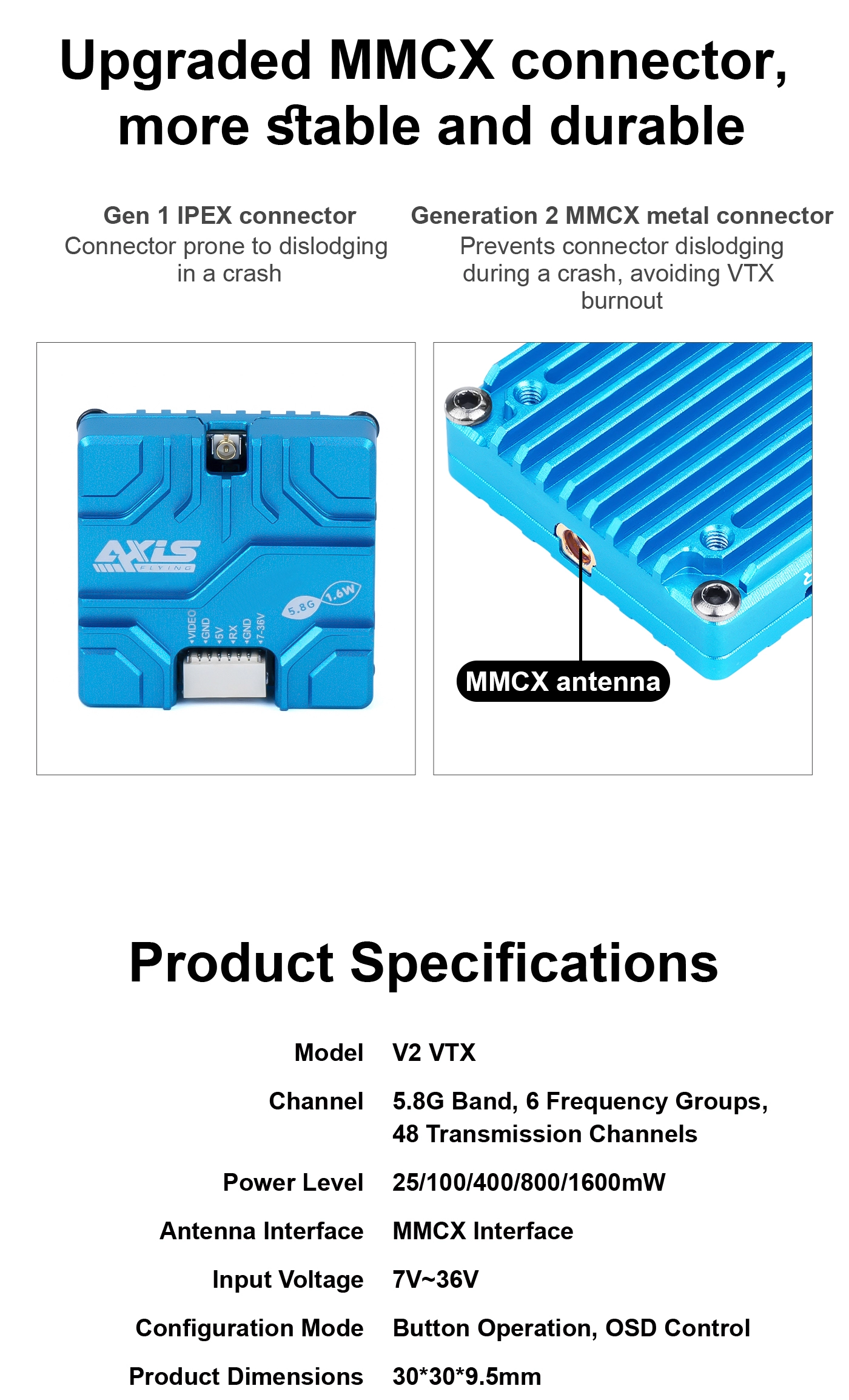

- Upgraded MMCX Connector: Features a rugged MMCX antenna interface that provides a more secure, crash-resistant connection compared to standard micro connectors.
- Wide Voltage Input: Safely accepts a 7V to 36V input, making it fully compatible with modern 6S and 8S power systems without the need for an external BEC.

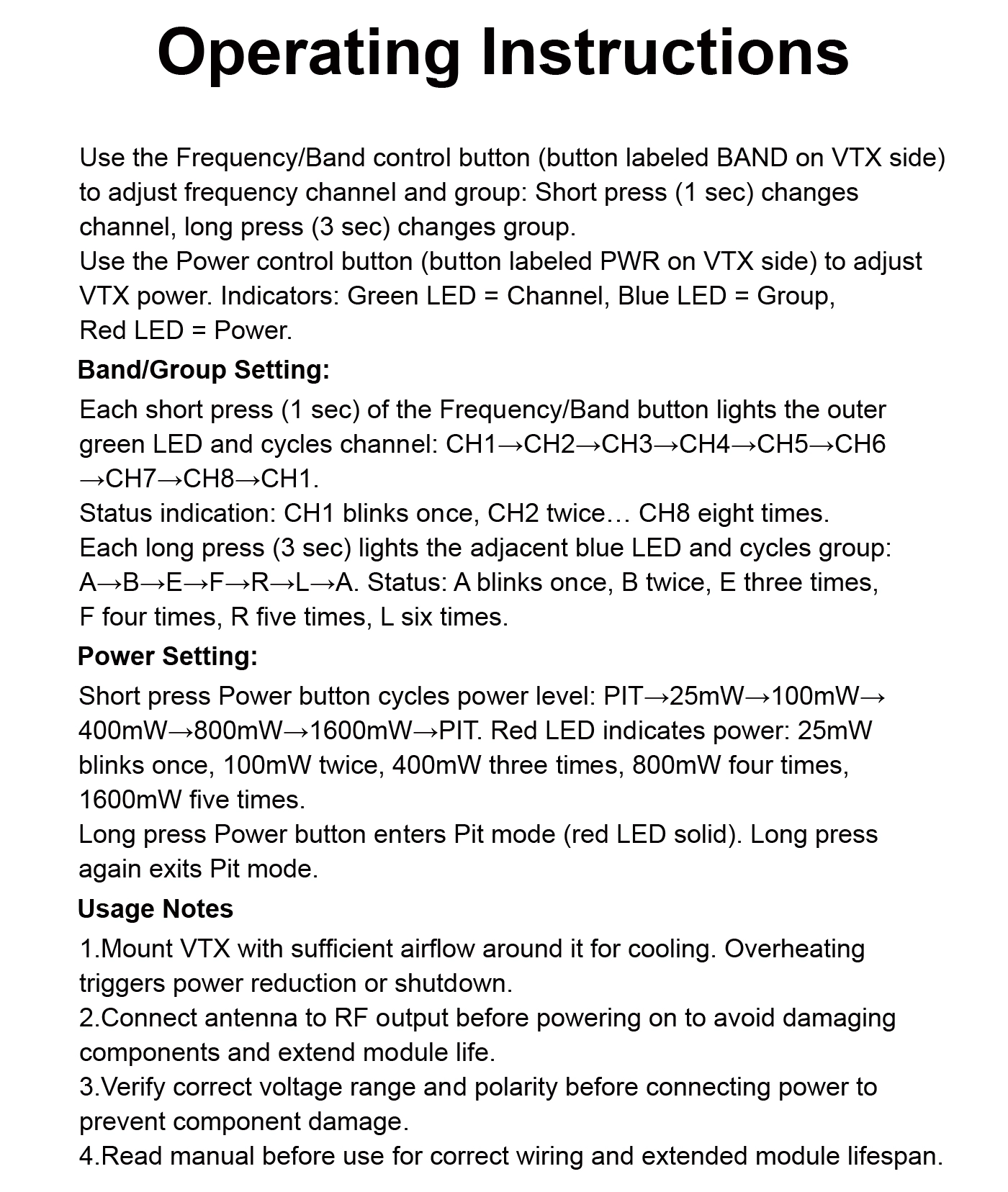

- IRC Tramp Protocol: Seamlessly integrates with Betaflight OSD, allowing pilots to quickly change bands, channels, and power outputs directly from their radio sticks.
Specifications
| Brand | Axisflying |
|---|---|
| Model | Smurfs V2 1.6W |
| Frequency Band | 5.8GHz (6 Bands, 48 Channels) |
| Output Power Options | 25mW / 100mW / 400mW / 800mW / 1600mW |
| Antenna Interface | MMCX |
| Input Voltage | 7V – 36V (2S – 8S LiPo) |
| Telemetry Protocol | IRC Tramp |
| Control Mode | Button & OSD |

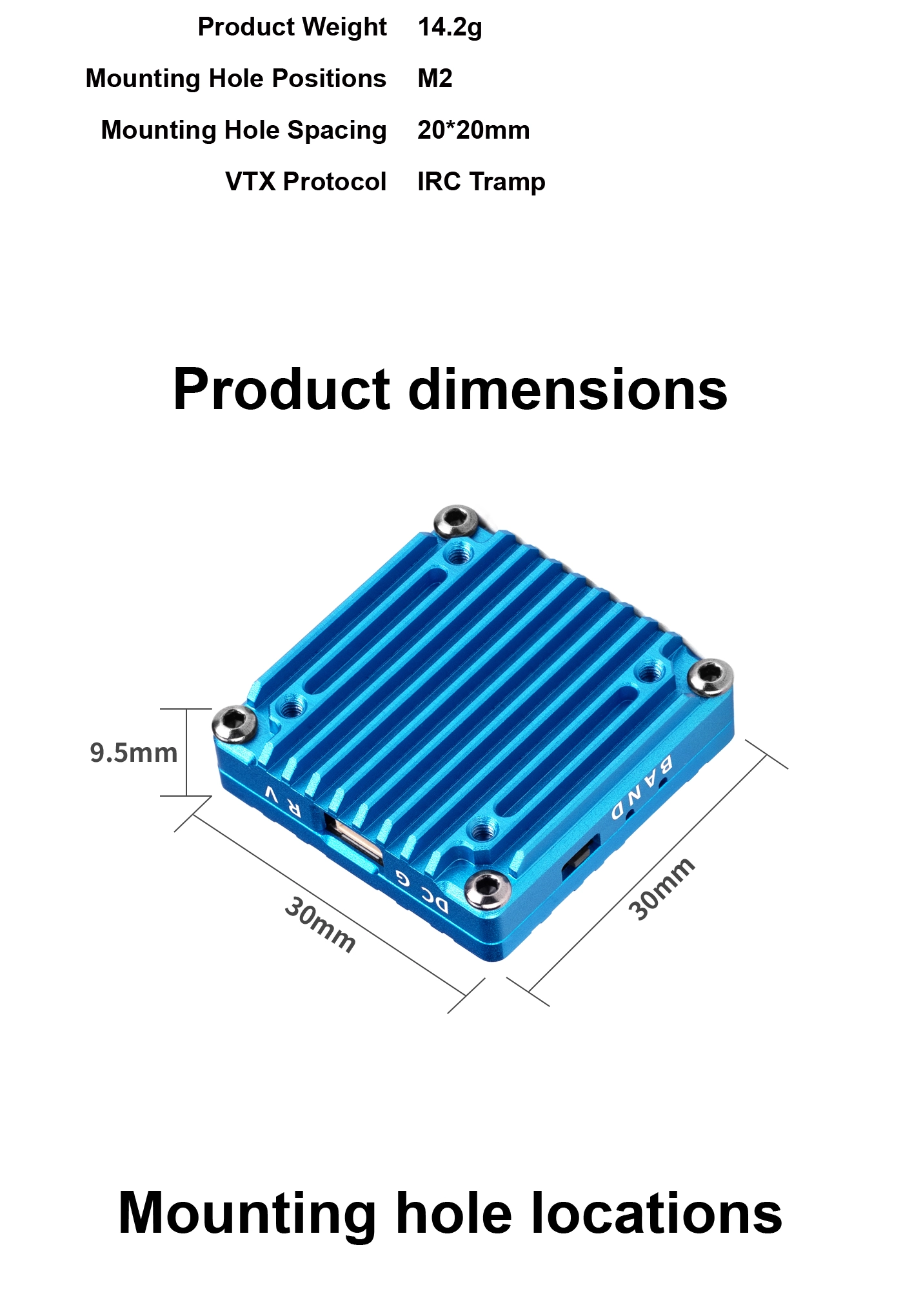

| Dimensions | 30 x 30 x 9.5 mm |
| Mounting Hole Pattern | 20x20mm (M2 Screws) |
| Weight | 14.2g |

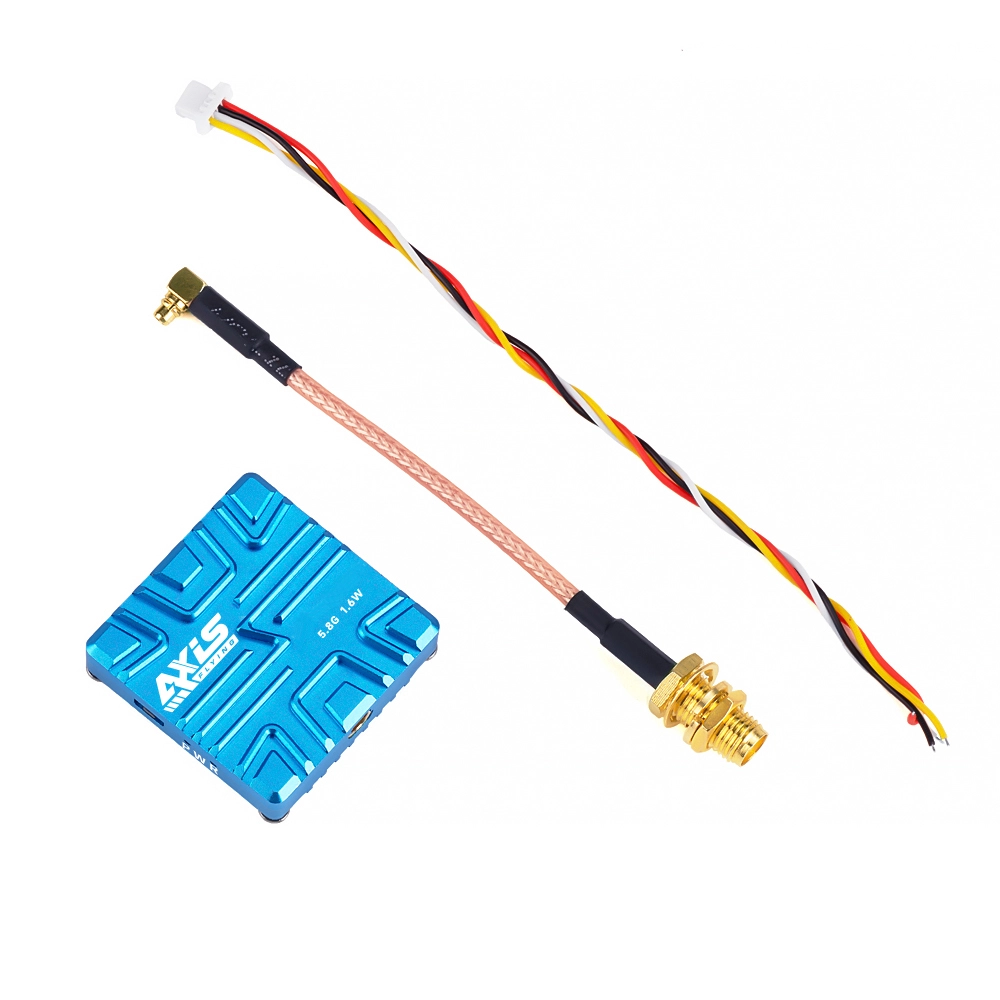

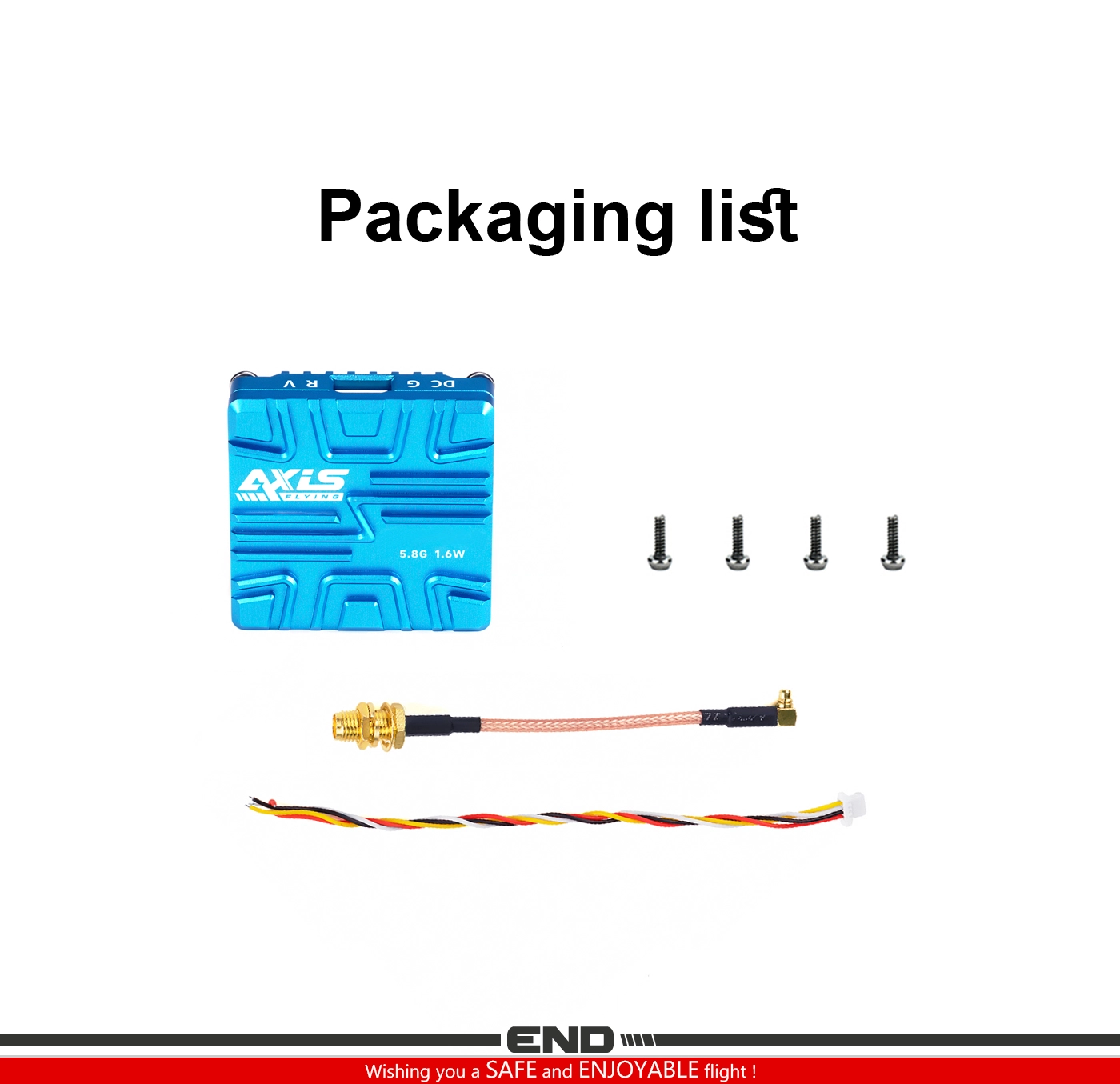

What’s in the Box
- 1x Axisflying Smurfs V2 5.8GHz 1.6W VTX
- 1x Connection Cable
- 1x Mounting Screws & Accessories Set
