AXISFLYING MANTA 30 3 INCH FREESTYLE FPV FRAME KIT

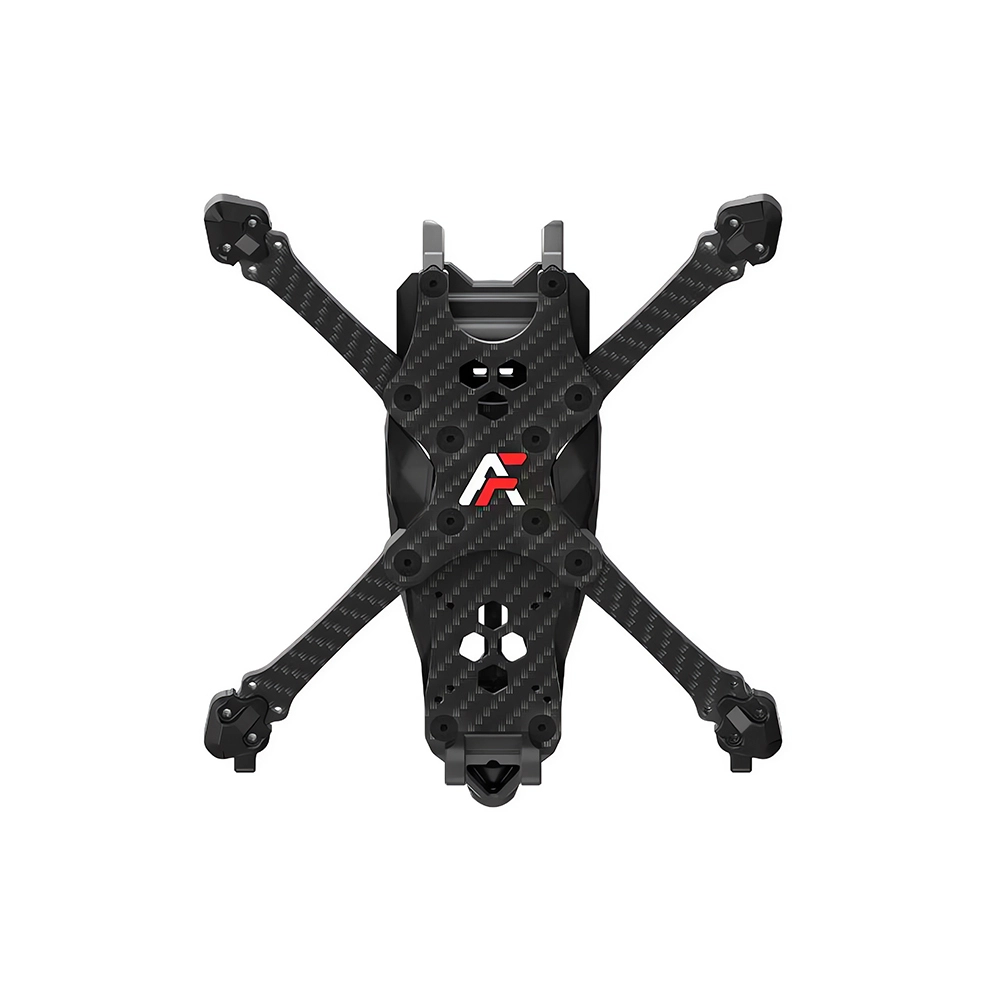

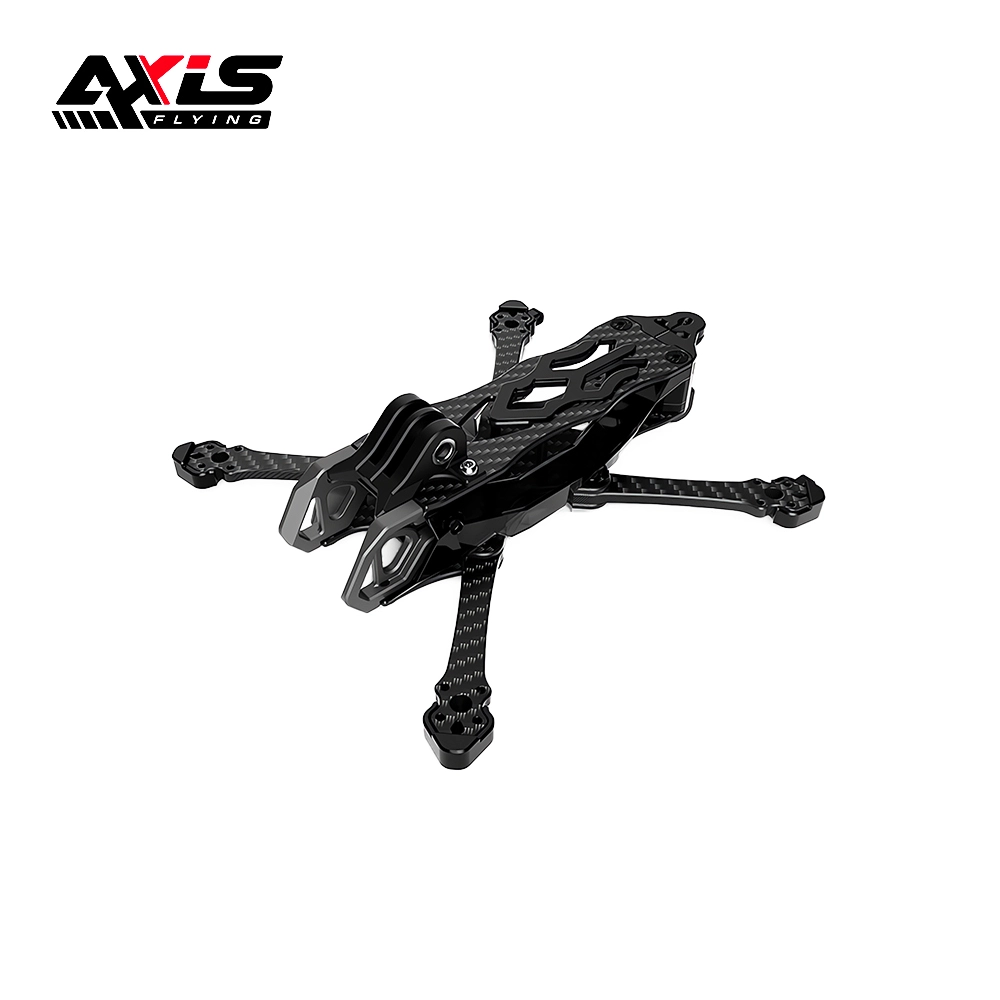

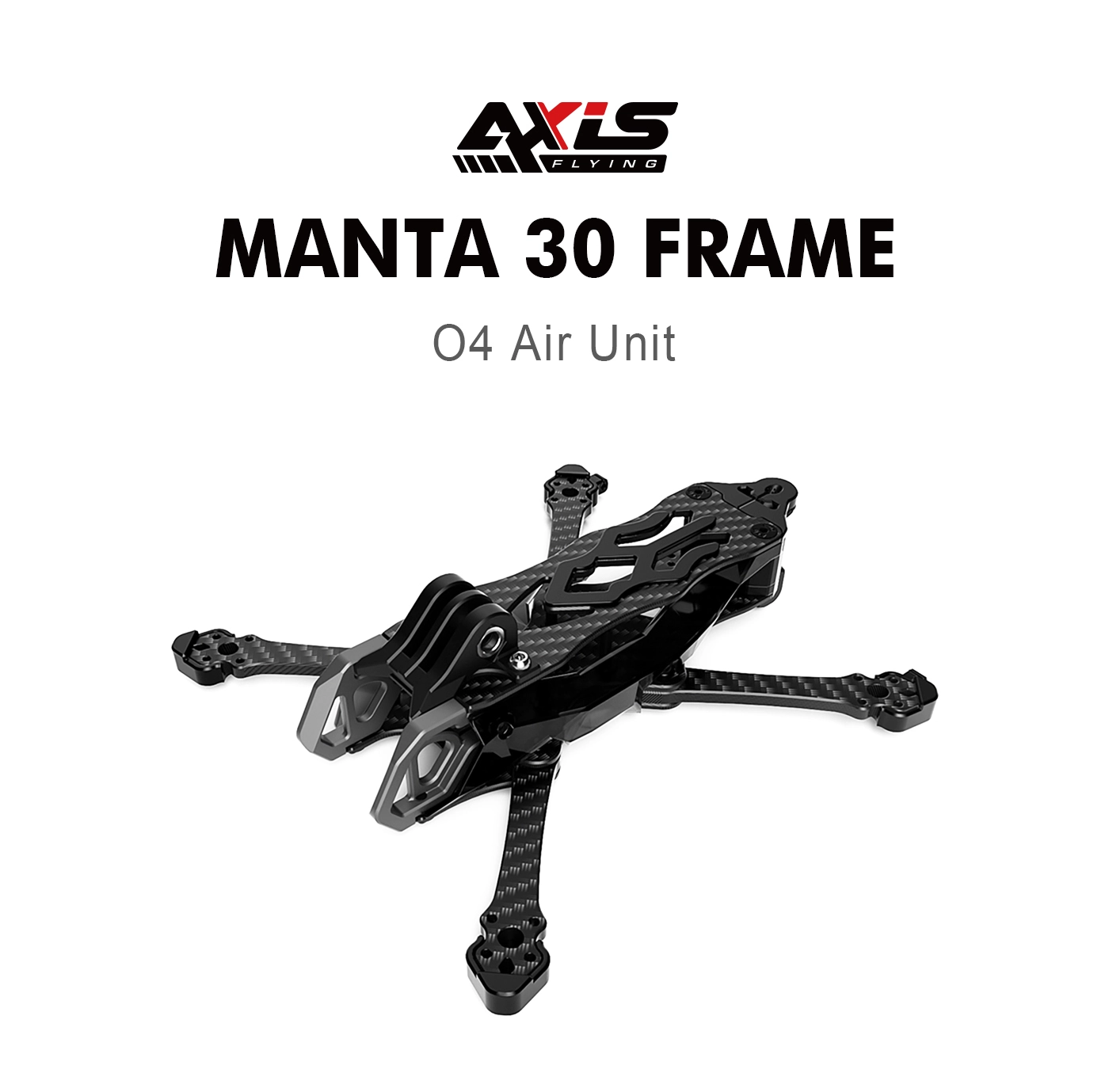

Axisflying MANTA 30 3-Inch Freestyle Frame Kit

Build a compact powerhouse with the Axisflying MANTA 30, a 3-inch FPV frame designed from the ground up for aggressive freestyle flying. Constructed from top-tier T700 carbon fiber, the frame utilizes incredibly robust 4mm thick arms to withstand the repetitive impacts and harsh bando crashes that would snap typical micro frames. To further enhance structural integrity, the MANTA 30 utilizes a unique M3 hardware motor mounting system, ensuring your motors remain securely fastened even under the immense torque generated by modern high-power 6S setups.

The MANTA 30 is perfectly optimized for the digital HD era, featuring protective side plates that shield your delicate electronics from dirt and moisture while providing a secure, rigid mount for the DJI O4 Air Unit camera. With versatile mounting options, it easily accommodates a standard 20x20mm flight controller and dual 25.5×25.5mm or 30.5×30.5mm video transmitters, making the build process incredibly straightforward. Its Squashed X geometry also ensures that the 3-inch propellers stay completely out of the camera’s field of view, delivering flawless, unobstructed flight footage.

Key Features

• High-Strength T700 Carbon: Crafted from premium T700 carbon fiber featuring ultra-thick 4mm arms, providing exceptional rigidity and crash resilience for aggressive freestyle maneuvers.
• Protective Side Plates: Integrated side plates not only protect the flight controller and ESC stack from environmental debris, but also provide a secure, vibration-free mount for the FPV camera.
• DJI O4 Ready: Specifically designed to accommodate the DJI O4 digital system with standard 19-20mm camera spacing, while ensuring the camera lens is protected during head-on impacts.
• Unique M3 Motor Mounting: Employs an oversized M3 screw pattern (12x12mm) for motor mounting, eliminating stripped threads and sheared screws commonly associated with high-torque 3-inch builds.
• Versatile Component Mounting: Provides ample room for your electronics with a standard 20x20mm M3 FC mount in the center, and dual mounting options in the rear for modern video transmitters.

Specifications

Recommended Setup

• Motors: Axisflying C204 2650KV (or equivalent 6S 3-inch motors)
• Propellers: 3-Inch Freestyle Props (e.g., 3x3x3)
• Electronics: 20x20mm 30A – 40A ESC & Flight Controller Stack
• Video System: DJI O4 Air Unit (or equivalent 20x20mm / 25.5×25.5mm VTX)
• Battery: 6S 650mAh – 850mAh LiPo

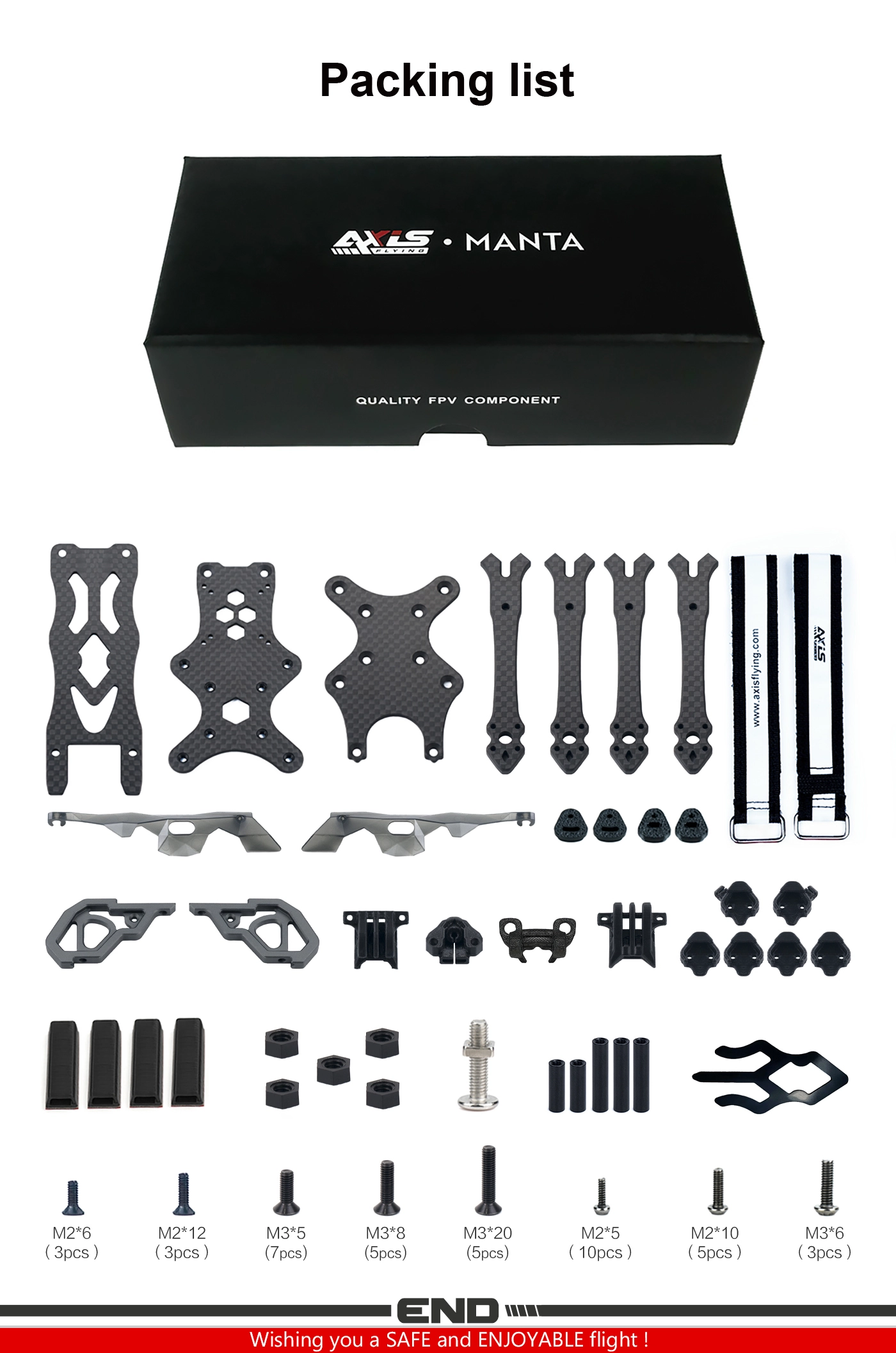

What’s in the Box

• 1x Axisflying MANTA 30 3-Inch Frame Kit
• 1x Hardware and Standoff Kit
• 1x Protective Side Plate Set
• 1x 3D Printed TPU Accessory Set
• 2x Battery Straps
• 1x Battery Pad
