FLYFISHRC OSPREY 5.8GHZ 130MM SMA ANTENNA – LHCP BLACK/CYAN

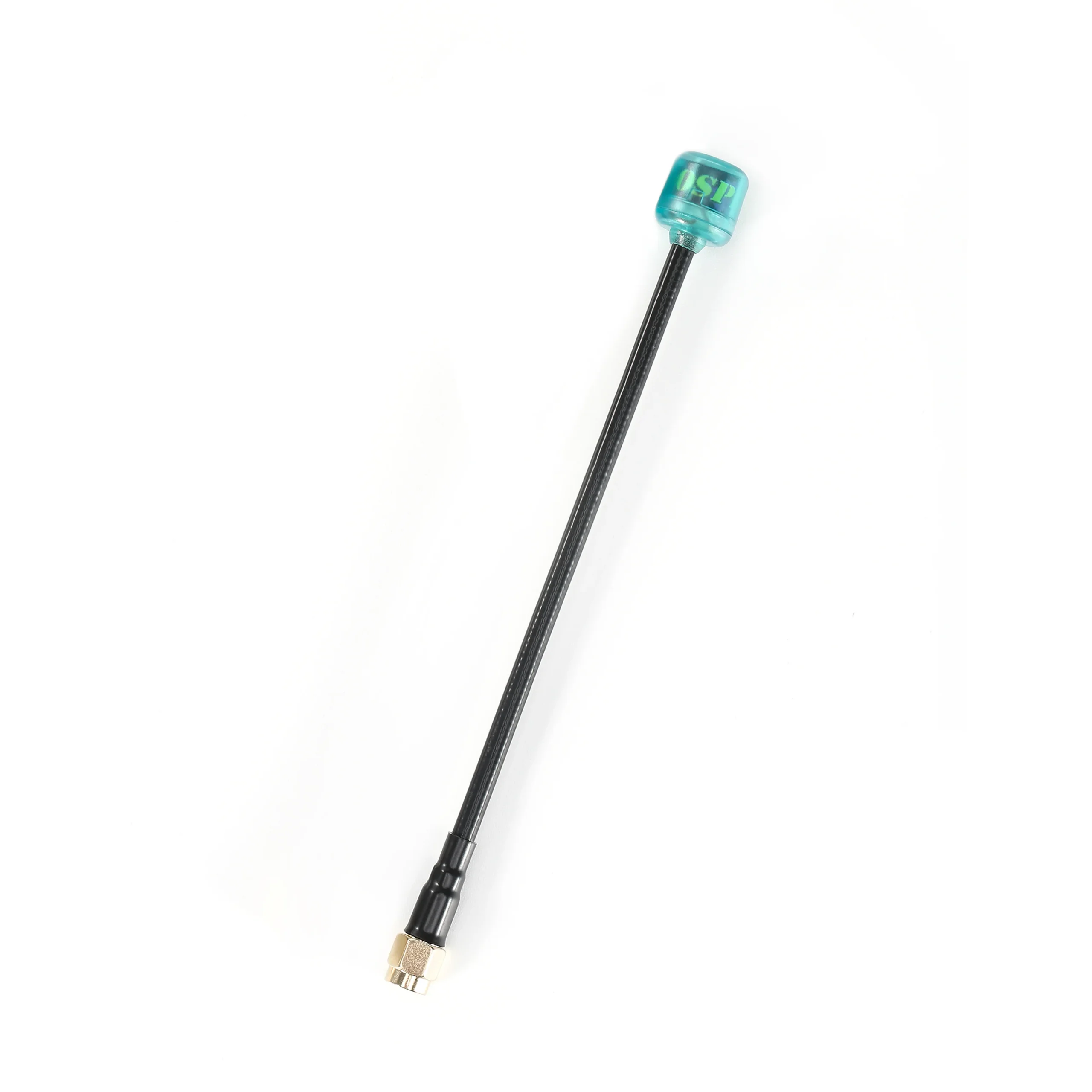

FlyFishRC Osprey 5.8GHz SMA Antenna (LHCP, 130mm)

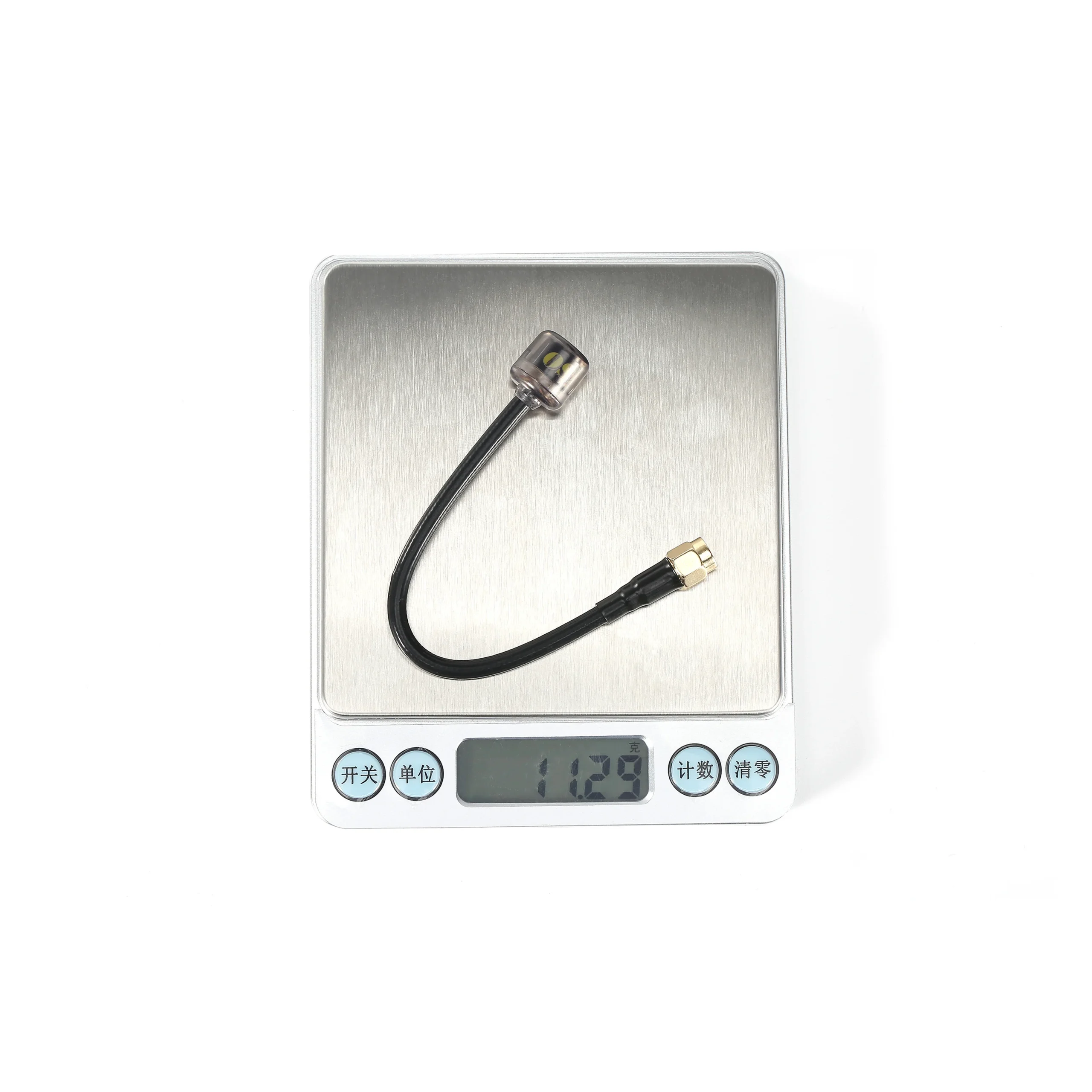

The FlyFishRC Osprey is a highly efficient 5.8GHz FPV antenna built around a 4-leaf hybrid network design. This LHCP version features a standard gold-plated SMA connector and a 130mm overall length, making it a perfect middle-ground choice for freestyle and cruising builds that need the antenna head to clear the battery without extending too far. It provides a near-perfect circular radiation pattern, offering strong signal penetration and clarity across the 5.6GHz to 6.0GHz band. Weighing 11.29g, the internal elements are protected by an impact-resistant, hermetically sealed polycarbonate casing. The rigid yet resilient RG141 coaxial cable ensures a secure fit and holds its shape during flight.

Key Features

• Optimized 130mm Length: Elevates the antenna head above the drone’s frame and battery to reduce signal blocking, without the excessive overhang of longer long-range antennas.
• High Efficiency: Delivers a 2.82dBi gain and an exceptional 99% radiation efficiency for a highly stable video feed in challenging environments.
• Compact 4-Leaf Design: The antenna head remains highly compact, measuring just 14.1mm in diameter and 14mm in height, reducing aerodynamic drag.
• Crash Resistant: The transparent polycarbonate casing is hermetically sealed to protect the internal elements from dirt, moisture, and impact damage.
• Flexible Coax: Uses tough RG141 coaxial cable that holds its shape well and withstands repeated bending during crashes and transportation.

Specifications

What’s in the Box

• 1x FlyFishRC Osprey 5.8Ghz SMA Antenna (LHCP, 130mm)
