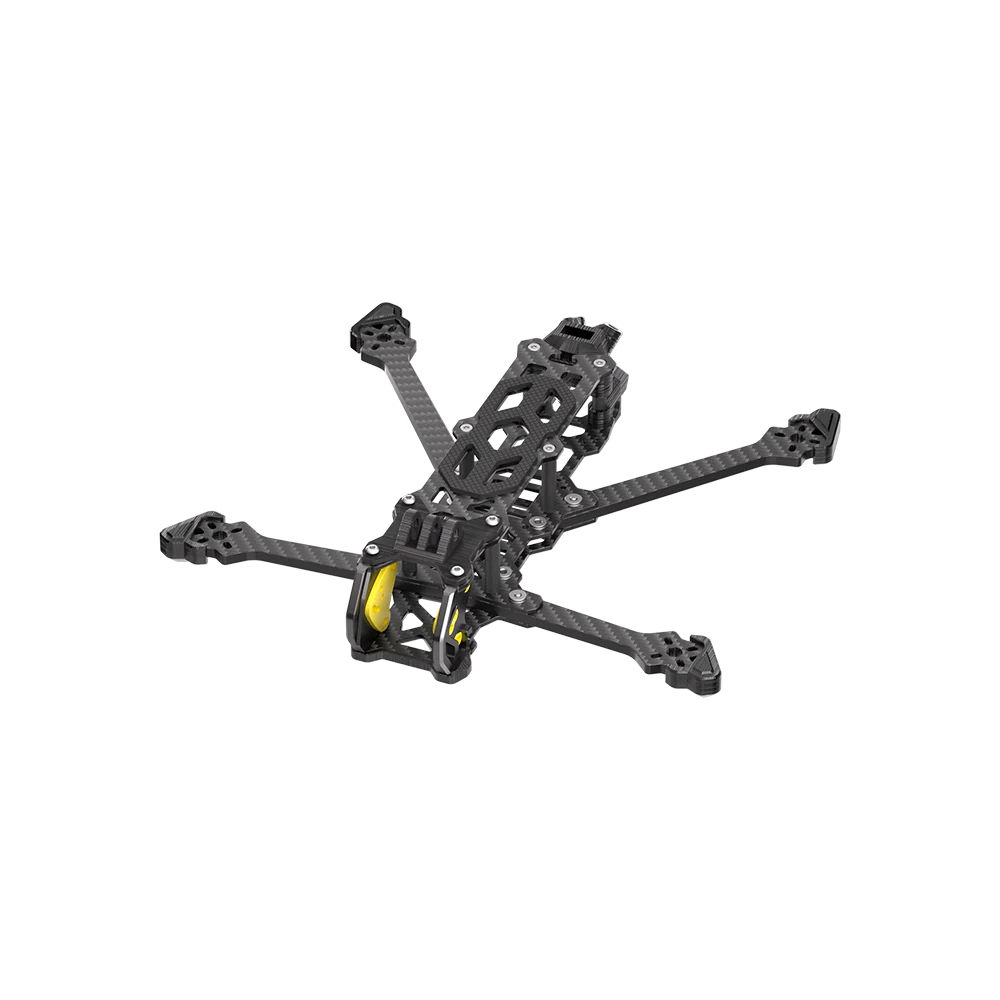

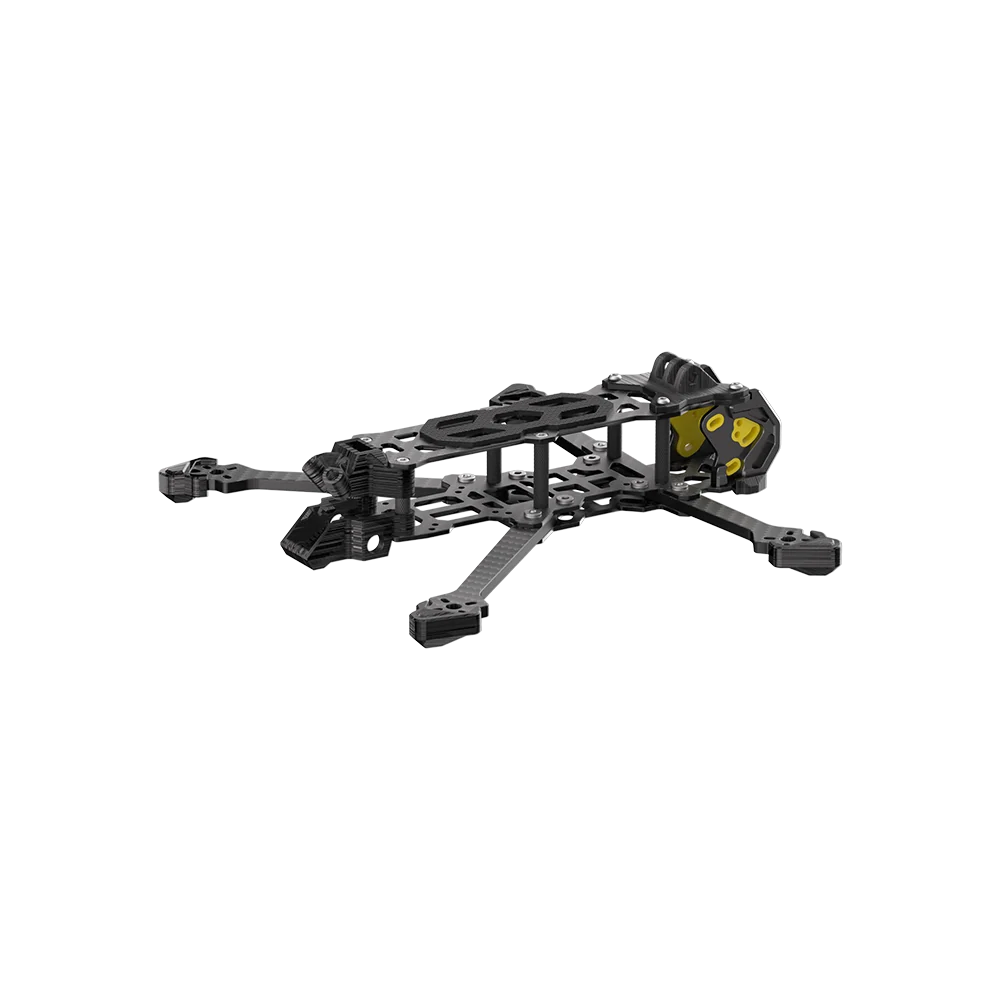

FLYFISHRC ATLAS 4 – 4 INCH T700 O4 PRO LONG-RANGE FPV FRAME
R825
The FlyFishRC Atlas 4 is a lightweight 4-inch Deadcat frame designed for long-range endurance and park freestyle. Weighing just 55.6g with all included TPU parts, it is capable of staying under the 250g weight limit while offering excellent durability through T700 carbon fiber and CNC aluminum components.
- Sub-250g Capable: Frame weighs only 55.6g with all TPU parts installed
- Deadcat Geometry: Keeps propellers completely out of your FPV camera view
- Premium Materials: T700 carbon fiber and CNC aluminum camera plates
- Vibration Isolation: Silicone shock absorbers for DJI O4 and 19/20mm cameras
- Comprehensive TPU Kit: Includes mounts for GPS, antennas, and an integrated XT30 connector
In stock
FlyFishRC Atlas 4-Inch FPV Frame

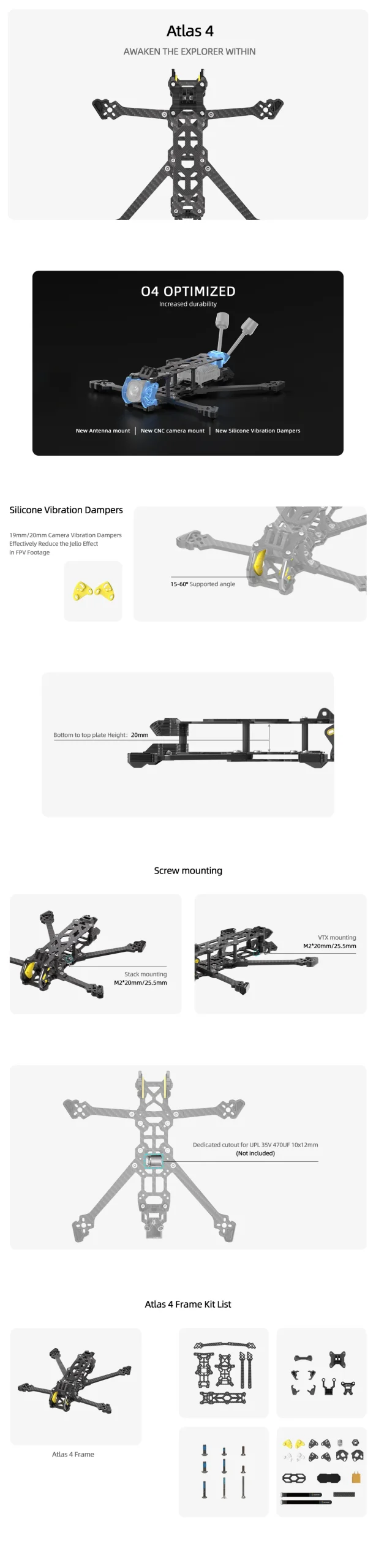

The FlyFishRC Atlas 4 brings versatility to the sub-250g category, serving as both an efficient long-range cruiser and a capable park freestyle frame. Built around a Deadcat layout, the Atlas ensures your HD flight footage remains completely free of propellers. The frame utilizes high-end T700 carbon fiber paired with CNC aluminum camera plates, providing a great balance of lightweight agility and structural durability. To guarantee clean, jello-free video, it features silicone shock absorbers tailored for the DJI O4 Air Unit and standard 19/20mm cameras. The kit also includes a highly functional set of TPU prints, allowing you to seamlessly integrate an XT30 connector directly into the frame or mount a mini GPS module for long-range security.
Key Features
- Sub-250g Ready: Weighing just 55.6g fully dressed in TPU, the Atlas can slide under the 250g regulatory limit when paired with the right electronics and a lightweight battery.
- Deadcat Layout: The swept-back front arm design keeps 4-inch propellers completely out of your FPV feed, making it ideal for cinematic cruising and exploration.
- Advanced Vibration Damping: CNC aluminum camera plates paired with custom silicone shock absorbers effectively isolate high-frequency resonance from HD systems like the DJI O4 Air Unit.
- Smart TPU Integration: Includes an extensive TPU kit featuring arm protectors, an action camera base, a VTX/RX antenna mount, a mini GPS holder, and an integrated XT30 connector mount.
- Premium Hardware: Assembled with strong 12.9-grade hardware pre-treated with Loctite for a secure, maintenance-free build.
Specifications
| Model | FlyFishRC Atlas 4 |
|---|---|
| Geometry | Deadcat |
| Wheelbase | 173mm |
| Total Dimensions | 108mm x 139mm x 28mm |
| Propeller Size | 4-Inch |
| Material | T700 Carbon Fiber & CNC Aluminum |
| Arm Thickness | 3.5mm |
| Top Plate Thickness | 1.5mm |
| Middle / Bottom Plate Thickness | 1.5mm / 1.5mm |
| CNC Plate Thickness | 4.0mm |
| FPV Camera Spacing | 19mm / 20mm |
| Stack Mounting Pattern | 20mm x 20mm / 25.5mm x 25.5mm (M2) |
| VTX Mounting Pattern | 20mm x 20mm / 25.5mm x 25.5mm (M2) |
| Motor Mounting Pattern | 9mm x 9mm / 12mm x 12mm (M2) |
| Weight | 55.6g (Including TPU Parts) |
Recommended Setup
- Motors: 1804 (e.g., ~3400KV for 4S) or 2004 size motors
- Propellers: Gemfan LR 4024 2-Blade Props
- Electronics: 30-40A AIO Flight Controller
- Video System: DJI O4 Pro / Vista / Walksnail / Analog
- Battery (Park Freestyle & Cruising): 4S 650mAh – 850mAh LiPo
- Battery (True Long-Range Endurance): 4S 3000mAh Li-ion (18650 pack)
What’s in the Box
- 1x FlyFishRC Atlas 4 Frame Kit
- 1x Comprehensive TPU Parts Set
- 1x Hardware Pack (with pre-applied Loctite)
- 1x Battery Pad and Strap
